Nexans Euromold 400LR/G Elbow Connectors 11/12kV 400Amps 50-240sqmm

Nexans Euromold 400LR/G Elbow Connectors 11/12kV 400Amps 50-240sqmm

Nexans Euromold 400LR Connectors

Elbow Connector

11kV 12kV 400 Amps



  • Product Category: Separable Connectors
  • Termination Type: Elbow ConnectorNexans Euromold
  • Bushing Interface Type: Interface B Connector
  • Location: Switchgear | Transformer | Motor
  • Voltage: MV HV Medium & High Voltage
  • Voltage Um Class: 11kV 33kV
  • Suit Cable Type: Polymeric
  • Number Of Cable Cores: Single Core or 3 Core
  • Cable Conductor Sizes: 50-240sqmm
  • Current Rating Connector: 400 Amps

Nexans Euromold 400LR/G Elbow Connector 11kV 12kV 400Amps Interface B

Nexans Euromold 400LR/G Elbow Connector 11kV 12kV 400Amps Interface B

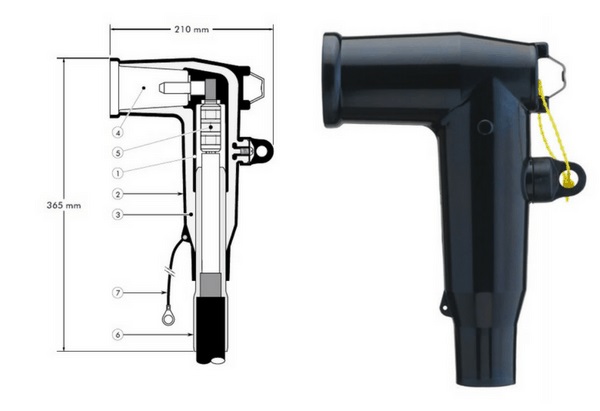

Nexans Euromold 400LR/G Elbow Connectors - Design

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between the insert and the jacket
  4. Type B - 400 A interface as described by CENELEC EN 50180 and 50181
  5. Conductor connector
  6. Cable reducer
  7. Earthing lead

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.
