Nexans Euromold 158LR/G Elbow Connectors 11/12kV 250Amps 16-70sqmm

Nexans Euromold 158LR Connectors

Elbow Connector

11kV 12kV 250 Amps

• Product Category: Separable Connectors
• Termination Type: Elbow Connector
• Bushing Interface Type: Interface A Connector
• Location: Switchgear | Transformer | Motor
• Voltage: MV HV Medium & High Voltage
• Voltage Um Class: 11kV 12kV
• Suit Cable Type: Polymeric
• Number Of Cable Cores: Single Core or 3 Core
• Cable Conductor Sizes: 16-95sqmm
• Current Rating Connector: 250 Amps

Nexans Euromold 158LR/G Elbow Connector 11kV 12kV 250Amps Interface A

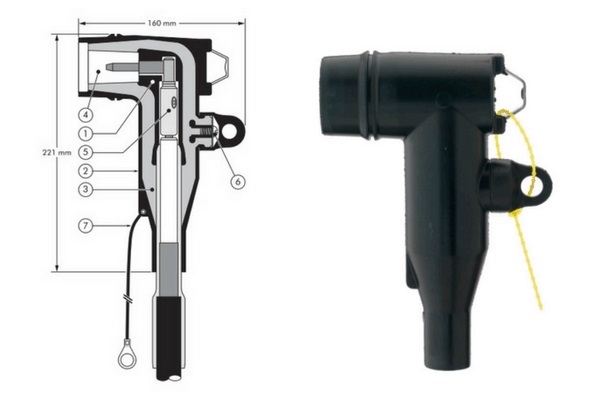

Nexans Euromold 158LR/G Elbow Connectors - Design

1. Conductive EPDM insert
2. Conductive EPDM jacket
3. Insulating EPDM layer moulded between the insert and the jacket
4. Type A - 250 A Interface as described by CENELEC EN 50180 and 50181
5. Conductor connector
6. Voltage test point
7. Earthing lead (-/G version only)

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.
