Nexans Euromold 158LR Connectors

Elbow Connector

 11kV 12kV 250 Amps

  • Product Category: Separable Connectors
  • Nexans EuromoldTermination Type: Elbow Connector
  • Bushing Interface Type: Interface A Connector
  • Location: Switchgear | Transformer | Motor
  • Voltage: MV HV Medium & High Voltage
  • Voltage Um Class: 11kV 12kV
  • Suit Cable Type: Polymeric
  • Number Of Cable Cores: Single Core or 3 Core
  • Cable Conductor Sizes: 70-95sqmm
  • Current Rating Connector: 250 Amps



Nexans Euromold 158LR Elbow Connector 11kV 12kV 250Amps Interface A

Nexans Euromold 158LR Elbow Connector 11kV 12kV 250Amps Interface A

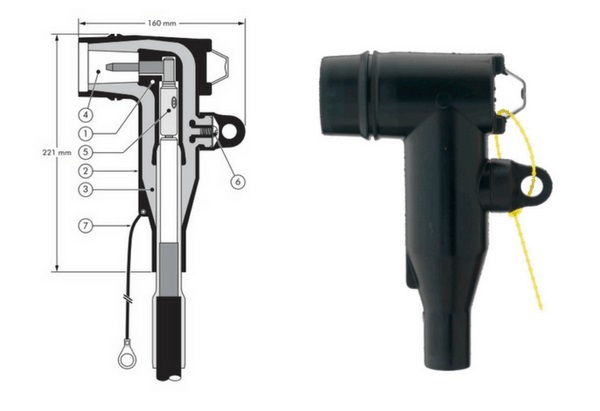

Nexans Euromold 158LR Elbow Connectors - Design

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between the insert and the jacket
  4. Type A - 250 A Interface as described by CENELEC EN 50180 and 50181
  5. Conductor connector
  6. Voltage test point
  7. Earthing lead (-/G version only)

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.
