Nexans Euromold 400TB/G Tee Connectors 11/12kV 630Amps 35-300sqmm

Nexans Euromold 400TB/G Tee Connectors 11/12kV 630Amps 35-300sqmm

Nexans Euromold 400TB Connectors

Tee Connector

11kV 12kV 630 Amps

  • Product Category: Separable Connectors
  • Termination Type: Tee Connector
  • Bushing Interface Type: Interface C Connector
  • Location: Switchgear | Transformer | Motor
  • Voltage: MV HV Medium & High Voltage
  • Voltage Um Class: 11kV 33kV 42kV
  • Nexans EuromoldSuit Cable Type: Polymeric
  • Number Of Cable Cores: Single Core or 3 Core
  • Cable Conductor Sizes: 35-300sqmm
  • Current Rating Connector: 630 Amps/800Amps



Nexans Euromold 400TB/G Tee Connector 11kV 12kV 630Amps Interface C

Nexans Euromold 400TB/G Tee Connector 11kV 12kV 630Amps Interface C

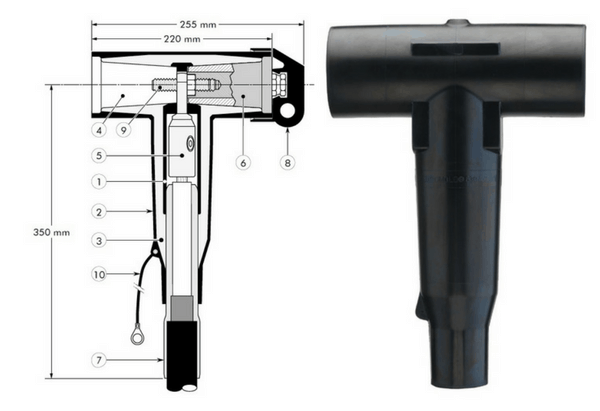

Nexans Euromold 400TB/G Tee Connectors - Design

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer
  4. Type C 630A Bushing Interface as CENELEC EN50180 & EN50181
  5. Conductor connector
  6. Basic insulating plug (with VD point)
  7. Cable reducer
  8. Conductive rubber cap
  9. Clamping screw
  10. Earthing lead

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.

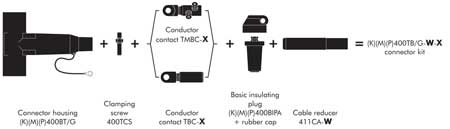

Nexans Euromold 400TB/G Tee Connectors 11 12kV 630Amps 35-300sqmm - Kit Contents

Nexans Euromold 400TBG Tee Connectors 11 12kV 630Amps 35-300sqmm - Kit Contents

Adobe

Nexans Euromold 400TBG Tee Connectors 11 12kV 630Amps 35-300sqmm
