Nexans Euromold 400LB Connectors

Elbow Connector

11kV 12kV 630 Amps



  • Product Category: Separable Connectors
  • Termination Type: Elbow Connector
  • Bushing Interface Type: Interface C Connector
  • Location: Switchgear | Transformer | Motor
  • Voltage: MV HV Medium & High VoltageNexans Euromold
  • Voltage Um Class: 11kV 24kV
  • Suit Cable Type: Polymeric
  • Number Of Cable Cores: Single Core or 3 Core
  • Cable Conductor Sizes: 25-300sqmm
  • Current Rating Connector: 630 Amps

Nexans Euromold 400LB/G Elbow Connector 11kV 12kV 630Amps Interface C

Nexans Euromold 400LB/G Elbow Connector 11kV 12kV 630Amps Interface C

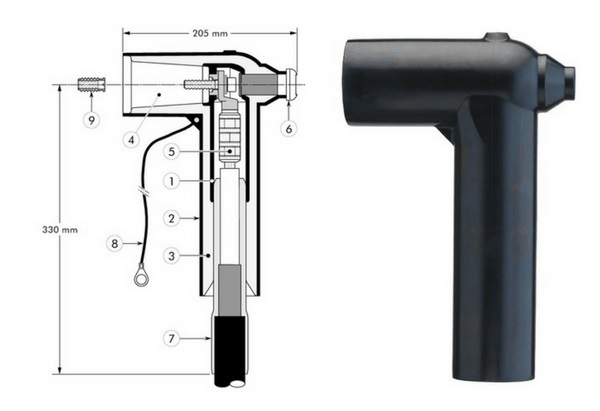

Nexans Euromold 400LB/G Elbow Connectors - Design

  1. Conductive EPDM insert
  2. Conductive EPDM jacket
  3. Insulating EPDM layer moulded between insert and jacket
  4. Type C 630A Bushing Interface as CENELEC EN50180 & EN50181
  5. Conductor connector
  6. Basic insulating plug (with VD point)
  7. Cable reducer
  8. Conductive rubber cap
  9. Clamping screw
  10. Earthing lead

Nexans Euromold separable cable connectors connect, joint and terminate medium and high voltage (MV-HV) power cables to electrical equipment including switchgear, transformers and motors up to 33kV.

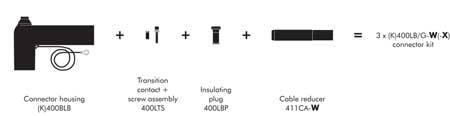

Nexans Euromold 400LB/G Elbow Connectors 11 12kV 630Amps 25-300sqmm - Kit Contents

Nexans Euromold 400LB/G Tee Connectors 11 12kV 630Amps 25-300sqmm - Kit Contents
