Clifford & Snell Yodalex YO9 Sounder

ATEX Certified, Hazardous Area Sounder (Horn)





YO9 Sounder - Main Features

  • High output sound 115dB at 1 metre
  • ATEXATEX approved sounder for gas and dust - Zones 1 & 2, 21 & 22
  • Red high performance paint finish with flare assembly
  • 2 stage alarm, selectable second stage
  • 32 selectable alarm sounder tones
  • Sound selection via 5 way DIL switch

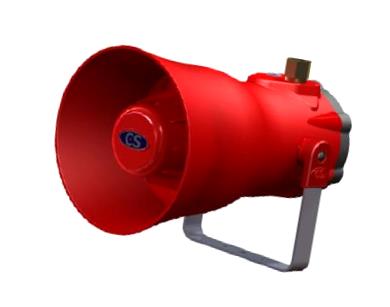

Pictured: Clifford & Snell - Yodalex YO9 - Hazardous Area (ATEX) Sounder

Clifford & Snell - Yodalex YO9 - Hazardous Area (ATEX) Sounder

Clifford & Snell - Yodalex YO9 - Hazardous Area (ATEX) Sounder - Technical Specification
Part Number YO9
Ingress Protection IP66, NEMA 4X
Weight 4.5kg
Sound Output 115dB(A) at 1 meter
Relative Humidity 95% at 40ºC
Certified Temperature Range ATEX/IECEx: -60ºC to +60ºC. UL & ULC: -60ºC to +66ºC
Operating Voltage 24VDC, 48VDC, 115VAC / 230VAC (48VDC is not available on UL listed products)
Current Consumption 24VDC - 300mA, 48VDC - 160mA, 115VAC - 80mA, 230VAC - 45mA

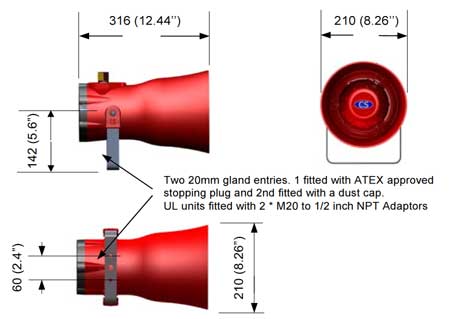

Pictured: Clifford & Snell - Yodalex YO9 - Hazardous Area (ATEX) Sounder - Dimensions Illustration

Clifford & Snell - Yodalex YO9 - Hazardous Area (ATEX) Sounder - Dimensions Illustration

R StahlClifford & Snell, including their Yodalex brand of hazardous area sounders and beacons for Zone 1 and Zone 2, has now been acquired by R Stahl.
