Wolf WL-85 ATEX Worklite Hazardous Area Zone 1 & Zone 2

Wolf WL-85 ATEX Worklite Hazardous Area Zone 1 & Zone 2

Wolf ATEX Worklite

Wolf WL-85

Hazardous Area Zone 1 & Zone 2

Rechargeable Floodlights & Worklights



Manufacturer: Wolf

Part Code: WL-85

  • Description: 12 LED High Power Rechargeable Battery Worklite
  • Hazardous Area Code: II 2 GD Ex e ib mb IIC T4 Ex tD A21 IP65 T135°C
  • Type Of Protection: ‘e’ Increased Safety, ‘ib’ Intrinsic Safety, ‘mb’ Encapsulation, tD Enclosure Protection
  • Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
  • Temperature Classification (Gas): T4
  • Hazardous Area Classification (Dust): Zone 21 and 22
  • Max Surface Temperature (Dust): T135°C
  • Ambient Temperature: 20°C to +40°C
  • Certificate: Sira07ATEX3027
  • Enclosure: Stainless Steel with Aluminium LED Lamp Head
  • Lens: Toughened Glass Lens Supplied with 3 Anti-static Lens Guards
  • Beam Type: Spot Beam with a Flood of Low Level Fringe Light

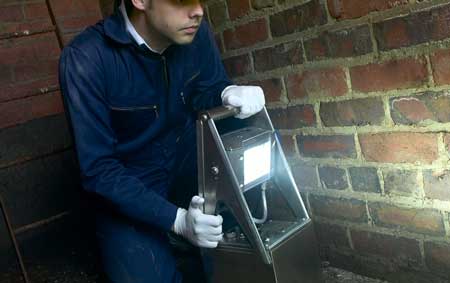

Pictured: Wolf WL-85 ATEX Worklite Hazardous Area Zone 1 & Zone 2

Wolf WL-85 ATEX Worklite Hazardous Area Zone 1 & Zone 2

Wolf WL-85 ATEX Worklite Hazardous Area Zone 1 & Zone 2 - Features & Benefits

  • ATEX Approved for Zone 1 explosive gas and dust atmospheres
  • High power white LED beam with flood of lower level fringe lightWolf Safety
  • LED light source ‘fitted for life’, no bulb replacement required
  • Long duration, up to 12 hours full power, 24 hours half power
  • Robust durable stainless steel construction
  • Locking pivot head to direct lightATEX
  • Toughened glass lens with optional disposable lens guard
  • Rechargeable high capacity battery, fully managed
  • State of charge LED indication
  • Supplied with a mains charger with state of charge indication, powered from 100 to 254Vac
Wolf WL-85 ATEX Worklite Hazardous Area Zone 1 & Zone 2 - Technical Specification
Wolf Product Reference WL-85
Product Description High Power Rechargeable Battery Worklite 12 LED
Code II 2 GD Ex e ib mb II C T4 Ex tD A21 IP65 T135ºC
Type of Protection 'e' Increased Safety, 'ib' Intrinsic Safety, 'mb' Encapsulation, tD Enclosure Protection
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas) T4
Area of Classification (Dust) Zones 21 and 22
Max Surface Temperature (Dust) T135ºC
Ambient Temperature -20ºC to +40ºC
Certificate SIRA07ATEX3027
Enclosure Stainless Steel with Aluminium LED Lamp Head
Lens Toughened Glass LEDs Supplied with 3 Anti-Static Lens Guards
Beam Type Spot Beam with a Flood of Low Level Fringe Light
Light Source Type High Power LED
Power / Output 12 x 3 Watt LEDs / Up to 1020 lm
Bulb Life 25,000 hours+ (Fitted for life)
Power Source Part Number W-235
Battery Type Rechargeable Battery, Sealed Gel Lead Acid
Volts 12V
Capacity 33Ah
Life Up to 500 Recharge Cycles
Low Battery Indicator Yes
Light Duration - High / Low Up to 12 hours / 24 hours
Ingress Protection IP65 to EN60529: 1992
Weight (Including Battery) 23kg
Charger Input 100 - 254 Vac
Recharge Time 12 hours
