Wolf Toplite T3 Searchlight

Wolf Toplite T3 Searchlight

Wolf Handlamps Hazardous Area ATEX Zone 1 & 2

Wolf Toplite T3 Searchlight







Wolf Toplite T3 Searchlight is one of the latest versions of the highly successful, industry standard range of Wolflite handlamps from The Wolf Safety Lamp Company for portable lighting applications.

Wolf Toplite T3 searchlight can be used in excessively wet conditions thanks to it’s IP67 ingress protection and if dropped in water it will float, beam upwards, for easy location. The light source is a glass sealed beam unit, protected by a toughened glass lens.

Wolf Toplite T3 are EX certified handlamps for safe use in hazardous area Zones 1, 2 and potentially explosive atmospheres – T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

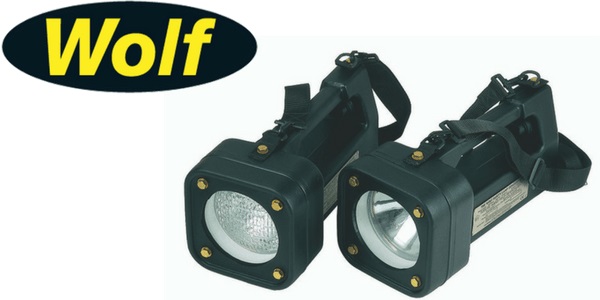

Wolf Toplite T3 Searchlight (Zone 1 & Zone 2 Hazardous Areas)

Wolf Toplite T3 Searchlight  Features & Benefits

  • 50 Watt Halogen Power for Hazardous Areas
  • 35 Watt Floodlight Version
  • Tough Anti-Static Case
  • State of Charge Indicator
  • Microprocessor Control Circuit
  • Low Power Switchable for Extended Duration
  • Low Battery Warning Function

Wolf Toplite T3 Searchlight

Wolf Toplite T3 Searchlight



Ex Certified Searchlight

Zones 1, 2 Hazardous Areas

  • Zone 1 & Zone 2 Gas
  • See below table for EX Certification details including T-Rating, Gas Groups and Zone locations

The Toplite T3 range are handlamps manufactured by Wolf Safety Lamp to provide lighting in Zone 1, Zone 2, Zone 21 or Zone 222 hazardous areas – the rechargeable halogen handlamp is for use in potentially explosive atmospheres.

Wolf Toplite T3 Searchlight - Specification
Wolf Handlamp  Wolflite Handlamp TL-9050T3  Wolflite Handlamp TL-9055T3
Product description 50W High Power Spotlight, Rechargeable Inspection Lamp  35W High Power Floodlight, Rechargeable Worklight
Code EEx e m ib IIC T3
Type of protection ""e" increased safety, "m" encapsulation "ib" intrinsic safety
Area of classification (Gases) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temp. classification (Gases) T3
Ambient temperature -20°C to +40°C
Certificate BASEEFA Ex 92C3405
Handlamp Enclosure Polyethylene, Anti-Static
Handlamp Lens Toughened Glass
Light source: Pt. no. Wolf TL-9062T3  Wolf TL-9063T3
Type Sealed Beam Unit with Halogen Filled Filament Bulb  Sealed Beam Unit with Filament Bulb
Volts 12.8v
Watts 50W  35W
Intensity 160,000cd 1,600cd
Life 100hrs (at 12.8V)  300hrs (at 12.8V)
Beam  6.5° x 4° Trapezoidal Flood
Power source: Pt. no. TL-9492
Type Rechargeable Battery, Nickel Cadmium
Volts 12V
Capacity 4.3Ah
Life Up to 1000 Recharge Cycles
Light duration 70 mins (130 mins low power) 100 mins (190 mins low power)
Ingress protection IP67
Weight (incl. battery) 4.0Kg (inc. battery)

Adobe

Wolf Toplite T3 Searchlight - Instructions

Adobe

Wolf Toplite T3 Searchlight - Spec Sheet
