Wolf LinkEx LX400 LED Temporary Luminaire ATEX

Wolf LinkEx LX400 LED Temporary Luminaire ATEX

Wolf LinkEx Temporary Luminaires & Floodlites Hazardous Area ATEX Zone 1 & Zone 2

Wolf LinkEx LX400 LED Temporary Luminaire ATEX





The Wolf LinkEx LX400 LED Temporary Luminaire ATEX is a high power LED leadlamp for use in short-term lighting installations and maintenance tasks.

Wolf LinkEx LED Temporary Luminaires are ATEX certified temporary floodlights for safe use in hazardous area Zones 1, 2, 21 & 22 and potentially explosive atmospheres – T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

Wolf LinkEx LX400 LED Temporary Luminaire ATEX - Features & Benefits

  • ATEX and IECEx certified for use in Zones 1 and 2 explosive gas and dust atmospheresWolf Safety
  • High power, low maintenance LED light source 'Fitted for Life'
  • High and low input voltage versions available
  • Incorporates unique SOVI (Safe Operation Voltage Indicator) monitor
  • Available with ATEX plugs and sockets to link in series/chain
  • Compact and robust designATEX
  • Low power consumption
  • Wide range of fixing and mounting accessories available



Wolf LinkEx LX400 LED Temporary Luminaire ATEX - Models Available

  • LX-400SH/SY10/ATX230
  • LX-400SHA/230/SY5
  • LX-400SH/SY10/ATX110
  • LX-400SHA110/SY5
  • LX-400SL/SY10/ATX24
  • LX-400SLA24/SY5

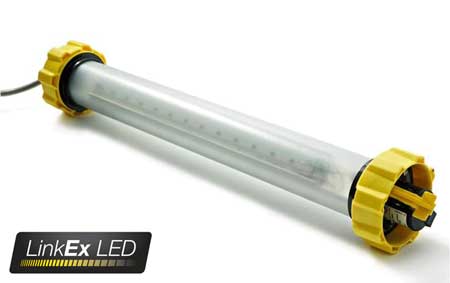

Pictured: Wolf LinkEx LX400 LED Temporary Luminaire ATEX

Wolf LinkEx LX400 LED Temporary Luminaire ATEX



ATEX Certified Luminaire
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations



Wolf LinkEx LX400 LED Temporary Luminaire ATEX- Specification
Wolf Safety Lamp Reference
Wolf LX-400
Product description
LinkEx LED ATEX Temporary Luminaire
Low Voltage (LV) High Voltage (HV)
Code
NON-LINKABLE II 2 GD Ex emb IIC T3 Gb (-20°C to +40°C) Ex t IIIC T170°C Db IP67
LINKABLE II 2 G Ex embd IIC T3 Gb (-20°C to +40°C) Ex t IIIC T170°C Db IP66*
Type of Protection "e" increased safety, "mb" encapsulation, "d" flameproof
Area of classification (Gases)
Zones 1 & 2, Gas Groups IIA, IIB, IIC
Temp. classification
T3
Ambient temperature
-20°C to +40°C
Max Surface Temp. (Dust) 170°C
Area of Classification (Dust) Zones 21 & 22
Certificate
SIRA12ATEX3177X, IECEx SIR 12.0070X
Enclosure & Lens
Polycarbonate with Anti-static Coating
Beam type
Wide Angle, Diffused Area Light
Light source: Type
48 x White High Power LEDs
Life
Over 60,000 hrs
Power ≈29W ≈32W
Output Up to 3250lm
Input Voltage  19-28V AC/DC 85-264V AC
Weight (Non-linkable)  3.0kg without cable  3.6kg without cable
Length (Non-Linkable) 0.7m
Ingress protection
IP66/67
Included Supplied with lens protecting film and hanging straps



Pictured: Wolf LinkEx LX400

Wolf LinkEx WF300



Adobe

Wolf LinkEx LX400 LED Temporary Luminaire ATEX - Instructions

Adobe

Wolf LinkEx LX400 LED Temporary Luminaire ATEX - Spec Sheet
