Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX

Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX

Wolf LinkEx Temporary Luminaires & Floodlites Hazardous Area ATEX Zone 1 & Zone 2

Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX





The Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX has a built-in back-up battery power supply to light the lamp in the event of a power failure and is ideal for exit route lighting atmospheres, where a T3/T4 temperature class permits.

Wolf LinkEx LL-540/E is suitable for a multitude of applications where a temprory light is required for extended periods of time and is CE marked to the ATEX Directive and IECEX certified for safe use in Zones 1 and 2 potentially explosive gas, vapour, mist and dust atmospheres, where a T3/T4 temperature class permits

Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX - Feaures & Benefits

  • ATEX and IECEx Certified for Zone 1 and 2 explosive gas and Zones 21 and 22 dust atmospheresWolf Safety
  • Emergency back-up light
  • Up to 3 hours battery duration after full charge
  • Fitted with plugs and sockets, linkable in series
  • Twin lamp configuration
  • Compact and robust design
  • Uses standard compact fluorescent lamps for ease of  ATEXmaintenance
  • Control ballast incorporates 'End of Life' protection circuit
  • Integrated Unistrut compatible mounting points

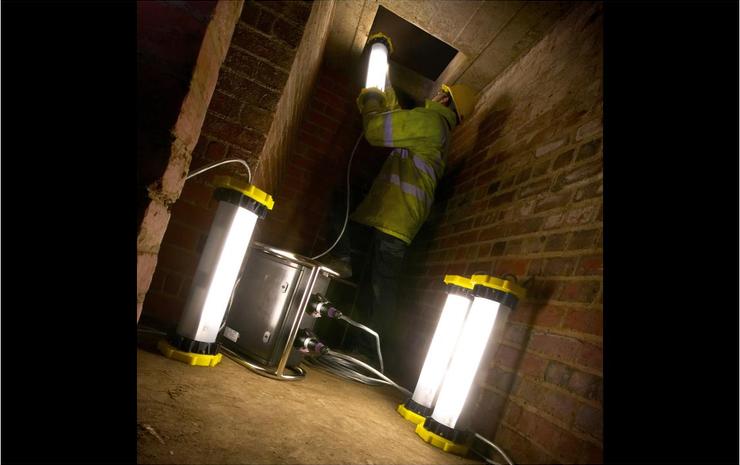

Pictured: Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX

Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX

Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX - Specification

Wolf Safety Lamp Reference
Wolf LL-540/E
Product description
ATEX Fluorescent Leadlamp – Emergency Linkable
Code
II 2 GD Ex embd IIC T3 Ex tD A21 IP66 T102°C
Type of Protection "e" increased safety, "m" encapsulation, "d" flameproof
Area of classification (Gases)
Zones 1 & 2, Gas Groups IIA, IIB, IIC
Temp. classification (Gases)
T3
Ambient temperature
-15°C to +53°C
Max Surface Temp. (Dust) 102°C
Area of Classification (Dust) Zones 21 & 22
Certificate
SIRA08ATEX3098 IECEx SIR 10.0121
Enclosure
Polymer
Lens
Polycarbonate with Anti-Static Coating
Beam type
Wide Angle White Area Light High Output, High Efficiency, Low Glare
Light source

Type - Standard 2G11 CFL Compact Fluorescent

Life - Up to 10,000 hrs

Power - 2 x 36W

Typical Consumption - 62W

Output - 5800lm

Voltage 110-130V AC
Weight 4.1kg
Length 0.58m
Ingress protection
IP66

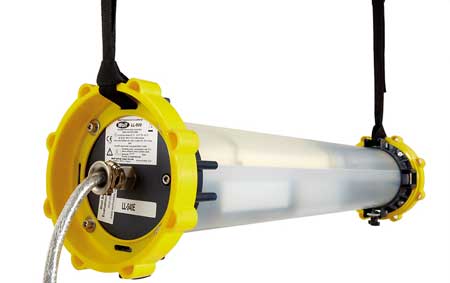

Pictured: Wolf LinkEx LL-540/E

Wolf LinkEx LL-540/E

Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX



Adobe

Wolf LinkEx LL-540/E Portable Fluorescent Leadlamp Emergency ATEX - Spec Sheet
