Wolf HT-650 Zone 0 Headtorch ATEX









Wolf HT-650 Zone 0 Headtorch ATEX is the ideal high light output and long duration headtorch for hands free lighting, particularly where access is difficult, requiring climbing or crawling.Wolf

The Wolf HT-650 is compact and lightweight and is highly durable, resistant against chemicals and electrostatic non-hazardous. The HT-650 is fitted with a shatterproof polycarbonate lens and has a tilt adjustment mechanism to allow the user to angle the light and is water/dust tight to a minimum of IP66.

Wolf HT-650 ATEX LED Headtorches are ATEX certified headtorches for safe use in hazardous area Zones 0, 1, 2, 20, 21 & 22 and potentially explosive atmospheres - T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

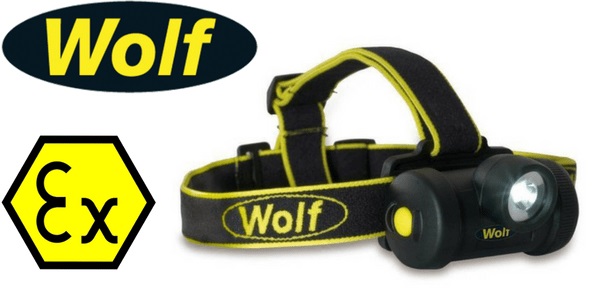

Wolf HT-650 ATEX LED Headtorch

Wolf HT-650 Zone 0 Headtorch ATEX Features & Benefits

  • ATEX Directive compliant
  • IECEx Scheme certified
  • Zone 0 explosive gas, vapour and mist and Zone 20 dust certified
  • T4/T3 temperature class
  • High Power LED light source
  • Lightweight, ergonomic design
  • Single handed switching
  • Hands free operation
  • IP66 water and dust tight
  • Adjustable, removable headband
  • Supplied with helmet clips for hard hat use

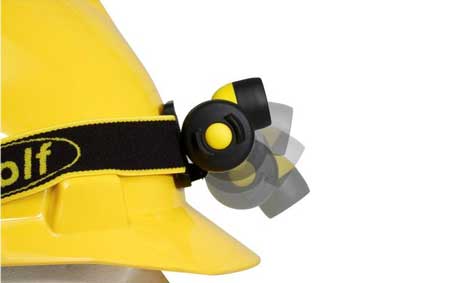

  • Tilt adjustment for light direction


Wolf HT-650 Zone 0 Headtorch ATEX

Wolf HT-650 Zone 0 Headtorch ATEX

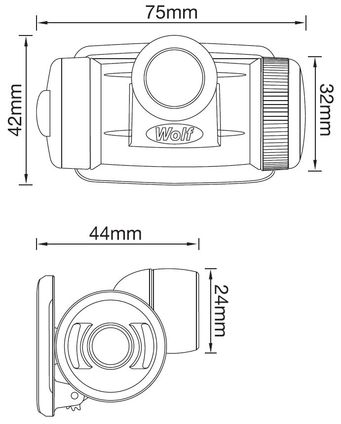

Wolf HT-650 ATEX LED Headtorch - Product Dimensions

Wolf HT-650 ATEX LED Headtorch - Product Dimensions



Wolf HT-650 Zone 0 Headtorch ATEX Specification
Wolf Safety Lamp Reference
HT-650 Headtorch (Hazardous Area)
Product description
ATEX LED Headtorch Zone 0
Hazardous area
code
Industrial: II 1 GD Ex ia IIC T4/T3 Ga IP66 / Ex ia IIIB T155°C Da
Mining: I M1 Ex ia I Ma IP66
Type of protection
'ia' Intrinsic Safety
Area of classification (Gases)
Zones 0, 1 and 2 - Gas groups IIA, IIB, IIC
Temp. classification (Gases)
T4/T3
Ambient temperature
-20°C to +40°C
Area of Classification (Dust) Zones 20, 21 and 22
Max Surface Temp. (Dust) 155°C
Certificate
Baseefa10ATEX0067 - IECEx BAS 10.0023
Enclosure
High Impact Thermoplastic, Chemical Resistant, Electrostatic Non-hazardous
Lens
Shatterproof Polycarbonate
Beam type
Broad Spot with Wide Angle Fringe Light
Light source: Type
High Power LED
Life
25,000+ hours (fitted for life)
Output Up to 130 lm
Power source: Pt. no.
3 x HT-210 (LR6 Cells)
Type
LR6 primary cells, to IEC 60086, Alkaline AA
Volts
3 x 1.5v
Light duration
Up to 17 hours
Ingress protection
IP66
Weight (inc. cells)
0.180kg
NATO Codified Version  HT-650MOD - NATO Stock No: 6230-99-226-2040
