Wolf ATEX Zone 0 Flood Banks

Wolf ATEX Zone 0 Flood Banks

Wolf Rechargeable Floodlights & Worklights - Hazardous Area ATEX Zone 1 & Zone 2

Wolf ATEX Zone 0 Flood Banks - XT Range

Hazardous Area Zone 0, Zone 1 & Zone 2

Rechargeable Floodlights & Worklights

The Wolf ATEX Zone 0 Flood Banks utilise Wolflite XT rechargeable handlamps to collectively deliver a flood of outstanding illumination, of up to 2,100 lumens, to a Zone 0 hazardous area.Wolf

Wolf's ATEX Zone 0 Flood Banks are available in configurations of 2, 4 or 6 handlamp banks and can be placed level on the ground or mounted on a tripod to elevate and direct light as required.

The Wolf ATEX Worklite is CE marked to the ATEX Equipment Directive and are IECEx certified, allowing use in hazardous area with potentially explosive gas, vapour, mist and dust atmospheres.

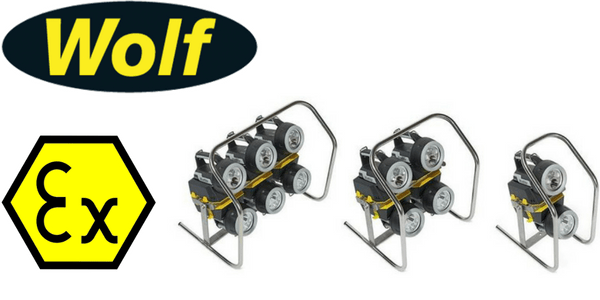

Wolf ATEX Zone 0 Flood Banks - Zone 0 Hazardous Area Floodlight

Wolf ATEX Zone 0 Flood Banks - Zone 0 Hazardous Area Floodlight

Wolf's XT-75 handlamps provide over 350 lms each from a high intensity spot beam which can be switched to a wide-angle flood providing 6 hours of light at full power and 12 hours on powersave mode.

The ATEX Zone 0 Flood Banks are constructed of stainless steel and handlamps are easily secured allowing the flood bank to be manually tilted and locked into position.

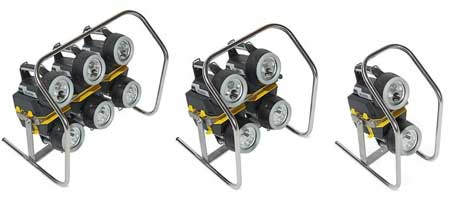

Pictured: Wolf ATEX Zone 0 Flood Banks

Wolf ATEX Zone 0 Flood Banks

Wolf ATEX Zone 0 Flood Banks - Features & Benefits

  • ATEX and IECEx certified for use in Zone 0, 1 and 2 hazardous areas
  • Incorporates Wolflite XT Rechargeable Zone 0 Handlamps (XT-75)Wolf Safety
  • Ultra bright high power LED light up to 2,100 lumens
  • Configuration of 2, 4 or 6 handlamps per bank
  • Mountable on tripod (available separately) or positioned at ground level
  • Spot and flood switchable beam optionsATEX
  • Up to 6 hours (full power) / 12 hours (powersave) duration
  • Built in state of charge indication for each lamp
  • IP67 dust and watertight
  • Mains chargers supplied and charging to be carried out in safe area only
  • Stands only available separately and can accommodate all Wolflite XT Handlamp models

ATEX Certified Floodlights

Zone 0 Hazardous Areas

  • Zone 0 hazardous area
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf ATEX Zone 0 Flood Banks - Product Range
Wolf Product Reference XT-602 XT-604 XT-606
Product Description ATEX Zone 0 Flood Banks
Handlamp Configuration x 2 x 4 x 6
Stand Material Stainless Steel
Handlamp Holder Material Impact Resistant Thermoplastic, Electrostatic Non-Hazardous 'Snap-in/Snatch-out' Function
Dimensions 340mm x 197mm x 451mm - L x W x H 340mm x 352mm x 451mm - L x W x H 340mm x 507mm x 451mm - L x W x H
Weight - Stand / Holders Only 2.6kg 3.6kg 4.5kg
Weight - With Handlamps 5kg 8.4kg 11.7kg
Total Light Output 700lms 1400lms 2100lms
Handlamps & Chargers Includes stand with handlamp holders only attached. Wolflife XT Rechargeable Zone 0 Handlamps (XT-75) and a separate quick charger with mains adaptor 100-254V AC (XT-200H - for use in safe area only) for each handlamp

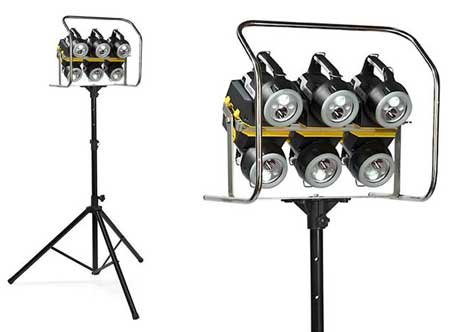

Pictured: Wolf ATEX Zone 0 Flood Banks for Hazardous Areas Zone 0, Zone 1 & Zone 2

Wolf ATEX Zone 0 Flood Banks for Hazardous Areas Zone 0, Zone 1 & Zone 2
