Wolf Handheld Leadlamps - Hazardous Area ATEX Zone 1 & Zone 2
Wolf ATEX LED Inspection Leadlamps - LL Range
Hazardous Area Zone 1 & Zone 2
Inspection Leadlamps
Wolf's ATEX LED Leadlamps are a versatile, lightweight and cable powered lamp which has a high powered LED bulb and is ATEX certified for use in Zone 1 and Zone 2 hazardous areas where a T4 temperature class permits and Zones 21 and 21 dust atmospheres, with a certified maximum surface temperature of 100°C.
The Wolf ATEX LED leadlamps are ideal for handheld inspection due to the LED light source which provides an output of up to 670 lumens minimising shadows and enhancing visibility.The LED leadlamp is cable powered and can be run from 110V to 240V or 24V to 48V supply voltages.
Wolf's ATEX LED leadlamps have a compact and lightweight design ensuring it is ideal for handheld use. The lamp has a transparent enclosure made from a robust and highly durable polycarbonate polymer to protect against impact damage typically found in industrial applications. A stainless steel spiral lens guard accessory can provide further protection against scratches and impact damage.
The ATEX LED leadlamp is sealed to IP67 and has an integral oil resistant rubber grip handle with a hook to allow the leadlamp to be suspended in the work area.

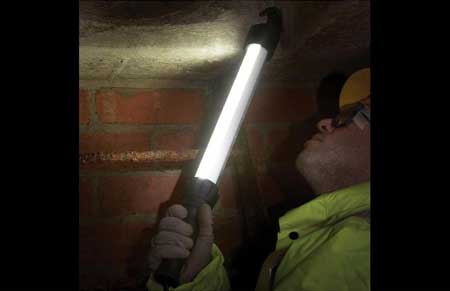

Pictured: Wolf ATEX LED Inspection Leadlamps
Wolf ATEX LED Inspection Leadlamps - Features & Benefits
Wolf Product Reference | LL-420LED | LL-440LED | LL-460LED | |
Product Description | ATEX LED Inspection Leadlamp | |||
Code | II 2 G Ex d IIC T4 Gb II 2 D Ex tb IIIC T100ºC Db | |||
Manufacturer | R Stahl | |||
Type of Protection | "d" flameproof, "e" increased safety | |||
Area of Classification (Gas) | Zones 1 and 2, Gas Groups IIA, IIB, IIC | |||
Temperature Classification (Gas) | T4 | |||
Area of Classification (Dust) | Zones 21 and 22 | |||
Max Surface Temperature (Dust) | 100ºC | |||
Ambient Temperature | -20ºC to +40ºC | |||
Certificate | PTB07ATEX1009 IECEx PTB 07.0018 | |||
Enclosure | Tube - Polycarbonate. Handle/Hook - Elastomer (EPDM) | |||
Beam Type | Wide Angle, White Inspection Light | |||
Light Source | Part Number | LL-445 | ||
Type | High Power LED | |||
Power | ~15W | |||
Output | 600 lm | 670 lm | ||
Life | 25,000 hours+ (Fitted for life) | |||
Power Source | Insulation | Class II | ||
Voltage | 24-48V | 110-240V | ||
Plug | 24V | 110V | 230V | |
Cable | 10, 1.5mm² HOFR with ATX plug | |||
Ingress Protection | IP66/67 minimum | |||
Weight | 1.4kg (excluding cable) |

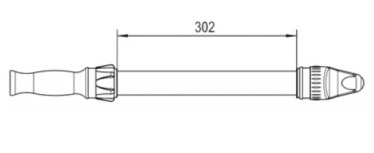

Wolf ATEX LED Inspection Leadlamps - Product Dimensions

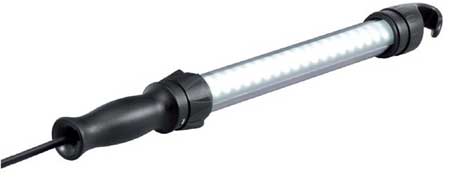

Pictured: Wolf ATEX LED Inspection Leadlamps for Hazardous Areas Zone 1 & Zone 2
![]() |
