Wolf's Airturbo's are air driven lamps which are certified for use in Zone 1 and Zone 2 hazardous areas.

The Wolf Airturbo provides illumination for applications such as tank cleaning and pipeline inspections, commonly within the oil and petrochemical industries and once connected to a suitable air supply, a continuous output of high quality illumination is produced, even under water.

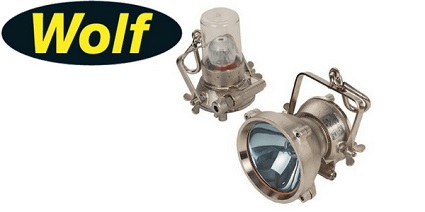

Wolf Airlamp Airturbo  Zone 1 & 2 Hazardous Area

Airturbos are available with either a bay light fitting which uses a ball glass and a protective polycarbonate dome to provide 360º illumination or with a flood beam giving a 30º angle of light or a concentrated spot light.

Wolf's Airturbo's use a 12V 55W tungsten halogen bulb which is powered by a compressed air driven turbo-alternator and a gunmetal impulse turbine wheel.

Wolf Airturbo airlamps meet strict requirements of underground explosion proof lighting for coal mines and is BASEEFA certified for use in zones 1 and 2 hazardous areas. Mostly used in oil and petrochemicals industry for tank cleaning and pipeline inspections.

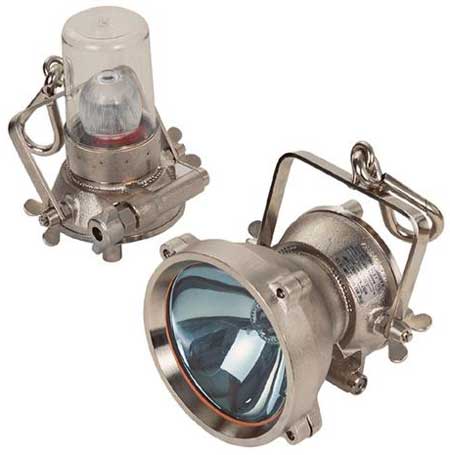

Pictured: Wolf Airturbo

Wolf Airturbo

Wolf Airturbo - Features & Benefits

  • Safe Compressed Air Power
  • Reversed Air Safety FeatureWolf Safety
  • Pressurised and Purged System
  • 55 Watt Long-life Halogen Bulb
  • Economical 0.25m3/min Consumption
  • Full Accessory Range Available
Wolf Airturbo - Product Range
Wolf Product Reference A-0444 A-0445
Product Description Safety Bay Light, Compressed Air Powered Safety Flood Light, Compressed Air Powered
Code Ex s II T6
Apparatus Standards SFA 3009:1972
Type of Protection "s" Special Protection
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas) T6
Ambient Temperature -20ºC to +40ºC
Certificate BASEEFA Ex 78209X*
Enclosure Nickel Plated Brass and Gun Metal
Lens Ball Glass / Polycarbonate Dome Toughened Glass (15mm)
Beam Type All-around 360º Illumination Flood (Matt Reflector as standard) or Spot (Polished Reflector to order)
Light Source Part Number A-1130
Type Tungsten Halogen Filament Bulb
Volts 12V
Watts 55W
Output 1,000lm (at 12V)
Life 1,000 hours (at 12V)
Power Source Type Compressed Air Driven Turbo-alternator
Air Pressure 4.0-8.0 bar
Consumption 0.25m³/min
Ingress Protection Once pressurised may be used underwater
Weight 8.2kg 12.5kg
*Special Certification Conditions A clean dry air supply must be used. Supply hose must be anti-static
