Stahl Hazardous Area Lighting











Stahl Compact & Emergency Compact Light Fittings

Stahl C-LUX 6508

Compact Light Fittings - 8 Watt

Stahl C-LUX 6508 Hazardous Area Compact Light Fitting

Stahl C-LUX 6508 range of hazardous area compact lighting is suitable to be operated as emergency lighting via a group or central battery system. Fittings are supplied separate to lamps which must be ordered in addition to the fitting.

  • Operating modes - non-maintained operation / non-maintained operation with switchable emergency light blocking
  • Continuous operating test
  • For fluorescent lamps 8 W 16 mm, for two-pin holder G5
  • Suitable for wall and ceiling mounting
  • Can be fitted to order with emergency exit signs
  • Central locking

Stahl C-LUX 6508 Hazardous Area Compact Light Fitting

Hazardous Area Compact Light Fittings

Explosion Protection Classification ATEXStahl Lighting - ATEX Certified Hazardous Area Lighting

  • Gas
  • ASEV 99.1 10381.01
  • Zone 2: Ex II 3 G Ex nA IIC T4
  • Dust
  • SEV 05 ATEX 0125
  • Ex II 2 D IP66 T75°C



Stahl C-LUX 6508 Hazardous Area Compact Light Fitting - Mechanical Data
Degree of protection IP66 (IP64 with breather 8162)
Protection class I (with internal PE connection terminal)
Material
Enclosure Glass fibre reinforced polyester resin colour: white, similar to RAL 9010
Lamp cover Polycarbonate
Seal Polyurethane; foamed into cover

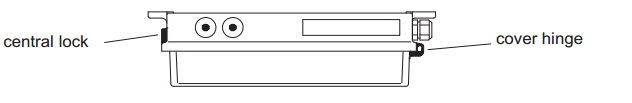

Cover options

Central locking using socket spanner M8 / SW 13; cover hinged for access



Pictured: Stahl C-LUX 6508 Compact Light Fitting Cover Options

Stahl C-LUX 6508 Compact Light Fitting Cover Options- Hazardous Area Lighting
