Stahl 6141 LED Portable Lamp - ATEX Zone 1 Zone 2 Hazardous Area Lighting

Stahl 6141 LED Portable Lamp - ATEX Zone 1 Zone 2 Hazardous Area Lighting

Stahl Hazardous Area Lighting











Stahl Portable & Hand Lamps

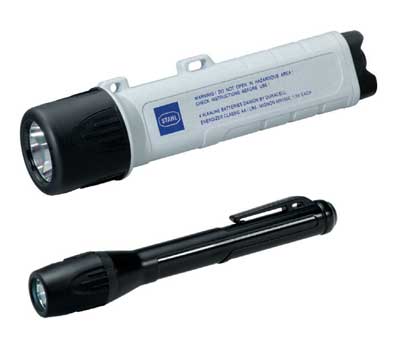

Stahl 6141 LED Portable Lamp

Zone 1 Zone 2 ATEX IECEx

Stahl 6141 LED Portable Lamp is a portable LED hand lamp with ATEX and IECEx certification which can be used in Zone 1 and Zone 2 hazardous areas.

Stahl 6141 Portable LED Lamp Operation

  • For alkaline batteries
  • Available in 2 sizes
  • Light source - LED
  • ATEX and IECEx certification > 6141/62-26 for use in IIC
  • Waterproof IP68

Stahl 6141 LED Portable Lamp

Stahl 6141 LED Portable Lamp

Hazardous Area Lighting - Explosion Protection IECEX

Stahl 6141/62-26

  • Gas Stahl 6141 LED Portable Lamp - IECEx Rated
  • IECEx ITS 11.0038X
  • Ex ib IIC T4 Gb
  • Dust
  • IECEx ITS 11.0038X
  • Ex ib IIIC T81°C Db IP68

Stahl 6141/61-16

  • Gas
  • IECEx ITS 11.0039X
  • Ex ib IIB T4 Gb

Hazardous Area Lighting - Explosion Protection ATEX

Stahl 6141/62-26

  • Gas Stahl 6141 LED Portable Lamp - ATEX Certified
  • ITS 11 ATEX 27368X
  • E II 2G Ex ib IIC T4 Gb
  • Dust
  • ITS 11 ATEX 27368X
  • E II 2D Ex ib IIIC T81 °C Db IP68

Stahl 6141/61-16

  • Gas
  • ITS 11 ATEX 27369X
  • E II 2G Ex ib IIB T4 Gb
Stahl 6141 Portable LED Lamp Technical Data

Technical Data

Version

Stahl 6141/62-26

Stahl 6141/61-16

Batteries

4 x Alkaline Daimon (by Duracell) AA/LR6/Mignon MN 1500, 1.5 V each
or
4 x Energizer Classic AA/LR6, 1.5 V each

2 x Duracell Plus Alkaline AAA/Micro/LR03/MN2400, 1.5 V each
2 x Daimon (by Duracell) Alkaline AAA/Micro/LR03/MN2400, 1.5 V each
2 x Energizer Mini Stilo Classic
E 92 Alkaline AAA/LR03, 1.5 V each
2 x Energizer Ultra AAA/LR03, 1.5 V each 2 x Varta Consumer Long Life Extra AAA/LR03, 1.5 V each
2 x Varta Hi Energy AAA/LR03,

1.5 V each

Mechanical data

Enclosure material

XAG (plastic material in accordance with < 1 GO ATEX)

Polycarbonate

Degree of protection

IP68 (3 m, 30 min)

IP68 (3 m, 30 min)
