Marechal - Plugs & Sockets for Hazardous Areas (ATEX)

10 Amp IP65/IP66 Explosion Proof



Marechal multi-contact connectors are IP65/IP66 rated with increased safety for hazardous areas (ATEX).

These Marechal hazardous area plugs & sockets comply with ATEX 94/9/CE Directive, IEC EN 60079-0 IEC60079-7 IEC EN 60079-31 International Standards and NEF C 15-100 French Standard. Marechal PXN12C ATEX Explosion-Proof plugs & sockets are also certified by VERITAS LCIE and GOST.

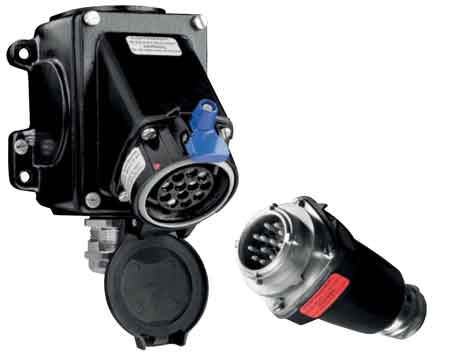

Pictured: Marechal PXN12C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets



Marechal PXN12C ATEX Plugs & Sockets

Marechal PXN12C ATEX Hazardous Area Plugs & Sockets Features:

  • Rated Current (with wiring according to standard): 10A
  • Maximum Voltage: 230V
  • Number Of Contacts: 36P+E
  • IP Protection Lid Closed: IP66/IP67
  • IP Protection Connected Plug: IP66/IP67
  • Shock Resistance: IK09
  • Ambient Temperature: -40°C to +55°C
  • Flexible Wiring (min-max): 1 - 2.5mm²
  • ATEX Zones: 1 & 2 (gas)  21 & 22 (dusts)

Marechal PXN12C ATEX Hazardous Area Plugs & Sockets Range:

  • Marechal PXN12C Wall Mounting Socket (10A)
  • Marechal PXN12C Plug male (10A)
  • Marechal PXN12C Inclined Socket female (10A)
  • Marechal PXN12C Inclined Appliance Inlet male (10A)
  • Marechal PXN12C Coupler Socket female (10A)
  • Marechal PXN12C Wall Mounting Appliance Inlet male (10A)

Marechal PXN12C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets

Rated Current (with wiring according to standard) 10A
Maximum Voltage 220V
Number of Contacts 11P+E
IP Protection Lid Closed IP65/IP66
IP Protection Connected Plug IP65/IP66
Shock Resistance IK09
Ambient Temperature -40ºC to +55ºC
Flexible Wiring (Min-Max) 1mm² - 2.5mm²
Wiring Crimping
Keying Positions 2
Protection Mode e or i
ATEX Zones 1 & 2, 21 & 22

Hazardous Area Plug & Sockets

Visit Hazardous Area Plugs for Zone 1 & Zone 2 ATEX certified plugs and sockets for potentially explosive atmospheres.
