Marechal - Plugs & Sockets for Hazardous Areas (ATEX)

Marechal DX Decontactors



Marechal multi-contact connectors are IP66/IP67 rated with increased safety for hazardous areas (ATEX).

These Marechal hazardous area plugs & sockets comply with ATEX 94/9/CE Directive, IEC EN 60079-0 IEC60079-7 IEC EN 60079-31 International Standards and NEF C 15-100 French Standard.

Marechal DXN37C ATEX Explosion-Proof plugs & sockets are also certified by VERITAS LCIE and GOST.

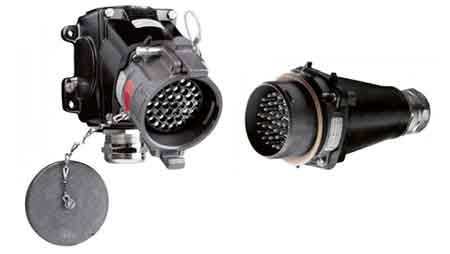

Pictured: Marechal DXN37C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets



Marechal DXN37C ATEX Plugs & Sockets

Marechal DXN37C ATEX Hazardous Area Plugs & Sockets Features:

  • Rated Current (with wiring according to standard): 10A
  • Maximum Voltage: 230V
  • Number Of Contacts: 36P+E
  • IP Protection Lid Closed: IP66/IP67
  • IP Protection Connected Plug: IP66/IP67
  • Shock Resistance: IK09
  • Ambient Temperature: -40°C to +55°C
  • Flexible Wiring (min-max): 1 - 2.5mm²
  • ATEX Zones: 1 & 2 (gas)  21 & 22 (dusts)



Marechal DXN37C ATEX Hazardous Area Plugs & Sockets Range:

  • Marechal DXN37C Wall Mounting Socket (10A)
  • Marechal DXN37C Plug male (10A)
  • Marechal DXN37C Inclined Socket female (10A)
  • Marechal DXN37C Inclined Appliance Inlet male (10A)
  • Marechal DXN37C Coupler Socket female (10A)
  • Marechal DXN37C Wall Mounting Appliance Inlet male (10A)

Marechal DXN37C Multi-Contact Connectors - Hazardous Area ATEX Explosion Proof Plugs & Sockets

Rated Current (with wiring according to standard) 10A
Maximum Voltage 230V
Number of Contacts 36P+E
IP Protection Lid Closed IP66/IP67
IP Protection Connected Plug IP66/IP67
Shock Resistance IK09
Ambient Temperature -40ºC to +55ºC
Flexible Wiring (Min-Max) 1mm² - 2.5mm²
Wiring Crimping
Keying Positions 3
Protection Mode e or i
ATEX Zones 1 & 2, 21 & 22


 ATEX Plugs & Sockets
A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal's DXN range of plugs and sockets are suitable for rated currents from 20A up to 63A and maximum voltages from 550V up to 750V.

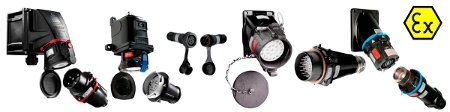

Hazardous Area Plug & Sockets

Visit Hazardous Area Plugs for Zone 1 & Zone 2 ATEX certified plugs and sockets for potentially explosive atmospheres.
