Clifford & Snell - Beacons (Strobes), Sounders (Horns) & Manual Call Points

Clifford & Snell MCP

Hazardous Area Manual Call Points







ATEX Manual Call Points - Main Features

  • Break glass and push button manual call point
  • ATEXGRP Ex d enclosure protects call point
  • ATEX, IECEx, GOST-R approved gas and dust call points
  • High performance red paint finish
  • Optional Red LED can be fitted to manual call point
  • Manual call point meets BS EN 54-11

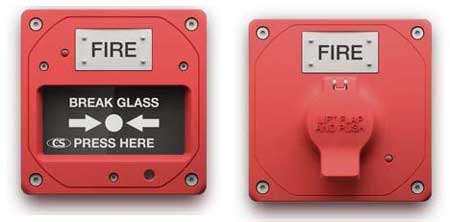

Pictured: Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP

Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP

The Manual Call Point Break Glass Version features optional stainless steel Lift Flap with Test Key provided as standard.

The Manual Call Point Push Button Version features push-to-operate function with reset key provided.

Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP - Technical Specification
Part Number MCP
Ingress Protection IP66 Rated
Weight Approx 1kg
Relative Humidity 95% at 40ºC
Certified Temperature -55ºC to +70ºC
Voltage Up to 250V
Switch Ratings DC: 12-30V - 5A (resistive) or 3A (inductive) . 30-50V - 1A resistive or inductive. AC 12-250V - 5A resistive or inductive
Cable Entries Up to 4 cable entries, Top entries 2 * as standard
Certification Suitable for Zones 1 & 2
Internal earth continuity provided as standard.
7 way 2.5mm terminal block mounted on a PCB
Single Pole change over switch supplied as standard and fitted directly onto the 7 way connector

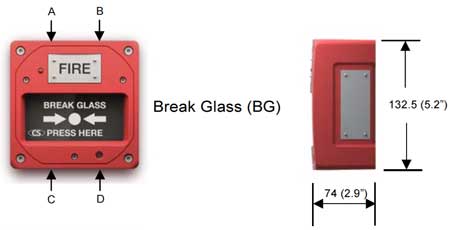

Pictured: Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP - Break Glass Dimensions Illustration

Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP - Break Glass Dimensions Illustration

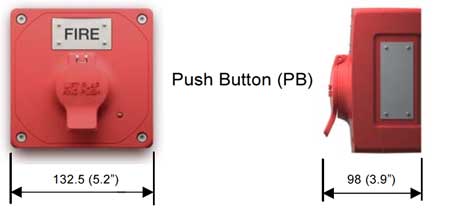

Pictured: Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP - Push Button Dimensions Illustration

Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP - Push Button Dimensions Illustration

R StahlClifford & Snell, including their Yodalex brand of hazardous area sounders and beacons for Zone 1 and Zone 2, has now been acquired by R Stahl.



Adobe

Clifford & Snell - Manual Call Point, Hazardous Area (ATEX) - Yodalex MCP

Adobe

Clifford & Snell - Manual Call Points - Wiring Diagram
