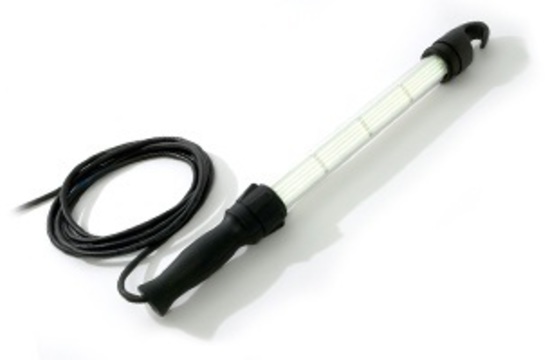

Wolf LinkEx LL-440 Portable Fluorescent Leadlamp ATEX

Wolf LinkEx LL-440 Portable Fluorescent Leadlamp ATEX

Wolf LinkEx Temporary Luminaires & Floodlites Hazardous Area ATEX Zone 1 & Zone 2

Wolf LinkEx LL-440 Portable Fluorescent Leadlamp ATEX



The ATEX compliant Wolf LinkEx LL-440 Portable Fluorescent Leadlamp ATEX is a versatile, lightweight, cable powered handlamp with a high power fluorescent light output ideal for handheld inspection and work activities in hazardous area Zones 1 and 2 including explosive atmospheres.

Wolf LinkEx LL-440 Portable Fluorescent Leadlamp ATEX

Wolf LinkEx LL-440 Portable Fluorescent Leadlamp ATEX Features & Benefits

  • ATEX Approved for Zone 1 & 2 explosive Gas and Dust atmospheres
  • Cold Cathode light technology for extra long lamp life Even white fluorescent light ideal for inspection
  • Compact and Lightweight designATEXWolf Safety
  • Anti roll & Hook Fitted with Cable and ATX plug Wide Mains Voltage Range 110v – 254 V AC



Wolf LinkEx LL-440 Portable Fluorescent Leadlamp ATEX - Specification
Wolf Safety Lamp Reference Wolf Leadlamp LL-440
Product description
ATEX Handheld Fluorescent Leadlamp
Code II 2 G Ex d llC T4 Ex tD A21 IP67 T120°C
Manufacturer R. Stahl
Apparatus standards EN60079-0, EN60079-1, EN61241-0, EN61241-1
IEC60079-0, IEC60079-1, IEC61241-0, IEC61241-1
Type of protection "d" flameproof, "tD"enclosure
Area of classification (Gas) Zones 1 and 2, Gas Groups IIA IIB IIC
Temp. classification (Gas) T4
Area of Classification (Dust)  Zones 21 and 22
Max Surface Temp (Dust)  120°C
Ambient temperature -20°C to +40°C
Certificate PTB07ATEX1009
IECEx PTB 07.0018
Enclosure  Pipe Polycarbonate
Handle / Hook Elastomer (EPDM)
Beam Type Wide Angle, white inspection light
Light source: Pt. no. LL-445
Type Lamp holder with 4 x CCFL
(Cold Cathode Fluorescent Lamps)
Power 8W
Output 800 lm
Life Up to 20,000 hrs
Power source: Insulation Class ll
Voltage 110-254V AC +-10%
Cable 10, 1.5mm2 SY with ATX Plug
Weight   1.2kg (excluding cable)
Ingress protection IP66/67 to EN60529:1992

*Please note that this product is now obsolete. Contact T&D for an alternative.
