Wolf Wolflite H-4DCA Handlamp ATEX

Wolf Wolflite H-4DCA Handlamp ATEX

Wolf Handlamps Hazardous Area ATEX Zone 1 & 2

Wolf WolfLite H-4DCA ATEX

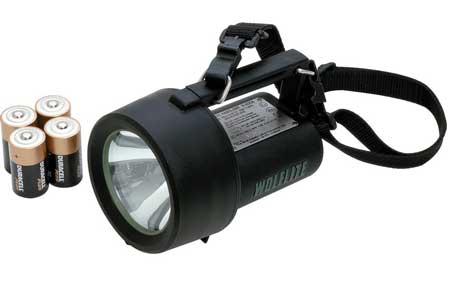

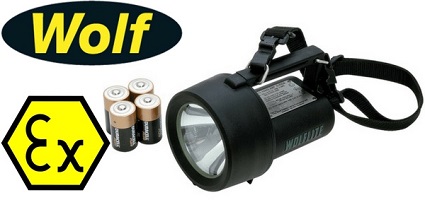

Wolf Wolflite H-4DCA Handlamp ATEX is one of the latest versions of the highly successful, industry standard range of Wolflite Ex handlamps from The Wolf Safety Lamp Company for hazardous area portable lighting applications.

Wolf Wolflite H-4DCA Handlamp is constructed from a robust and highly durable thermoplastic material and is ideal for use within harsh industrial environments. In addition to this, the material is anti-static, preventing the build up of potentially dangerous electro-static charges.

Wolflite H-4DCA handlamp provides reliable and versatile hazardous area lighting according to both ATEX Directive and IECEx standards – the handlamps utilise a halogen filled filament bulb as a light source and are used for safe lighting in hazardous area Zones 1 and Zones 2 (potentially explosive gas) and Zones 21 and Zones 22 dust atmospheres (IIA, IIB & IIC Groups) with T4 temperature classification.

Wolf Wolflite H-4DCA Handlamp ATEX

Wolf Wolflite H-4DCA Handlamp ATEX Features & Benefits

  • CE marked to ATEX Directive Explosive gas, vapour and mist certified for zones 1 & 2, up to T4 temperature classWolf Safety
  • Dust ignition protected for zones 21 and 22, for dusts with ignition temperatures over 135°C
  • Increased light output from halogen bulb
  • Alkaline cell approval giving 20 hour duration
  • Robust anti-static thermoplastic lamp enclosure
  • Ingress protection to IP66
  • Lloyd's Register Type Approved
  • Supplied with detachable shoulder strap

Wolf Wolflite H-4DCA Handlamp ATEX

Wolf Wolflite H-4DCA Handlamp ATEX

ATEX Certified Handlamp

Zones 1, 2, 21 & 22 Hazardous Areas

  • Zone 1 & Zone 2 Gas
  • Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf Wolflite H-4DCA Handlamp ATEX - Specification
Wolf Safety Lamp Product Reference
Wolflite Handlamp H4DCA
Product description
Safety handlamp, primary cell powered
Code
II 2 GD EEx e ib IIC T4 IP66 T135°C
Equipment category
2 GD
Apparatus standards
EN50014, EN50019, EN50020, EN50281-1-1
Type of protection
"e" increased safety, "ib" intrinsic safety
Area of classification (Gases)
Hazardous Area Zones 1 and Zones 2
Gas Groups IIA, IIB and IIC
Temp. classification (Gases)
T4
Area of classification (Dust)
Zones 21 and 22
Max. surface temperature (Dust)
135°C
Ambient temperature
-20°C to +40°C
Certificate
BAS 00 ATEX 2203
Handlamp Enclosure
Thermoplastic, anti-static
Handlamp Lens
Toughened glass (6mm)
Beam type
Spot
Light source: Pt. no.
H-141 only
Type
Halogen filled filament bulb
Volts
4.8v
Watts (Amps)
2.4W (0.5A)
Output
37 lm (at nominal voltage)
Life
20hrs (at nominal voltage)
Power source: Pt. no.
4 x H-20 (LR20)
Type
LR20/R20 primary cells, to IEC 60086
Volts
4 x 1.5v
Light duration
up to 20 hours
Ingress protection
IP66 to EN60529 : 1992
Weight (incl. cells)
1.45kg

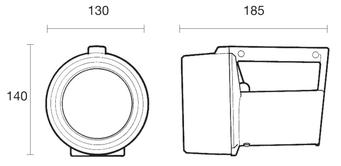

Wolf Wolflite H-4DCA Handlamp ATEX - Product Dimensions

Wolf Wolflite H-4DCA Handlamp ATEX - Product Dimensions

Wolf WolfLite H-4DCA

Wolf WolfLite H-4DCA
