Hazardous Area Zone 1 & Zone 2 (ATEX) Control Stations

Hazardous Area Ex e II

Hazardous Area Ex e mb II

Hazardous Area Ex d e IIC

Technor XAWE is a new range of hazardous area certified polyamide boxes consisting of individual boxes that can be equipped with 1 to 3 Harmatex control and signalling units - a specific device allows assembling several boxes to obtain numerous configurationsand combinations.Atex

Control Station Specification

  • Material : Polyamide
  • IP Rating : IP65-IP66
  • Temperature : –20°C to +40°C
  • Standards : Cenelec EN60079-0, EN60079-1, EN60079-18,
  • EN61241-0, EN61241-1
  • Ex-Code: [ex] II 2 GD
  • Ex e II or Ex e mb II or Ex d e IIC

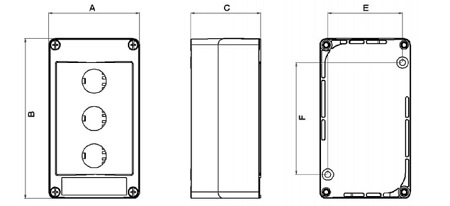

Control Stations - Hazardous Area - Technor XAWE - Diagram

Control Stations - Hazardous Area - Technor XAWE Diagram

Control Stations - Hazardous Area - Technor XAWE - Technical Specification
Box A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
XAWE1... (XAWE2812/9104) 85 85 65    74 ¹) 54 ¹)
XAWE3... (XAWE21) 150 85 65 45 54 ²) 105 ²)
XAWE3... + XAWE1 236 85 65 45 54 ²) 105 ²)
