Martindale Electric Metrohm METE3640 4kV Flash Tester Description

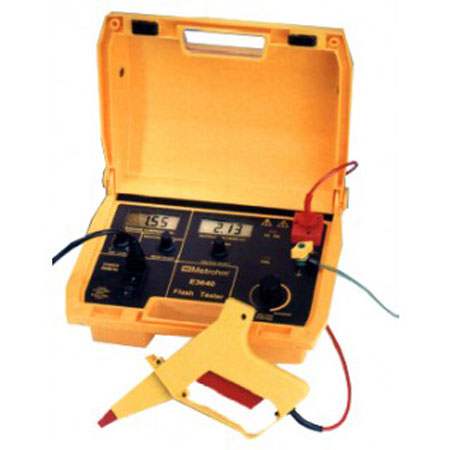

The Metrohm E3640 is a 4kV AC flash tester is capable of operating from either a 115V or 230V supply, at 50 or 60Hz. the Metrohm E3640 has a twin 3 1/2 digit LCD display which shows both output voltage and leakage current. The Metrohm flash tester device is built into a robust carry case, making it easily portable.

The Metrohm E3640 is a 4kV AC flash tester has three modes of operation, where the fail lamp on the E3640 illuminates and a buzzer will sound:

1. Trip: will trip when a pre-determined current is exceeded
2. Breakdown: fast transients can trigger the trip
3. Burn: where the trip function is by-passed and the fault current flows continuously to expose the fault

Metrohm 4kV Digital Flash Tester Device

Martindale Electric Metrohm METE3640 4kV Flash Tester Specifications

Power Requirement: 115 / 230V +/- 15%, 50/60Hz, 40VA

Fuses: 230V: 5 x 20mm 0.25A, HBC, Type F

           115V: 5 x 20mm 0.5A, HBC, Type F

Output Voltage Range: 0 - 2.2, 0 - 4.2kV 50 / 60Hz AC

METE3640 Accuracy: +/- 2% of reading +/- 1 digit

Leakage Current: 0 - 5mA (nominal), 50 / 60Hz in 10µA steps

Accuracy: +/- 2% reading, +/- 1 digit

Trip Level Range: 0 to 3mA 50 / 60Hz

Metrohm METE3640 Setting Accuracy: +/- 5% of full range

Trip Response Leakage: Will trip for fault duration >5mS but not for <100µS

Breakdown: Will trip for fast transients of 30µS and above

Complies with: EMC to BS EN 50081-1 & BS EN 50082-2

Safety & Flash Test: BS EN 61010-1

Dimensions: 330 x 263 x 144mm

Metrohm METE3640 Weight: 4kg approx



Martindale Electric Metrohm METE3640 4kV Flash Tester Contents

  • Metrohm METE3640 4kV Flash Tester
  • Flash gun
  • Earth lead
  • Mains power lead
  • Instruction manual
