Martindale Electric Metrohm METE3511 5kV Analogue Insulation Tester Description

The Martindale Electric Metrohm E3511 5kV analogue insulation tester has both battery and mains operation. The Metrohm E3511 measures insulation from 100kΩ to 100GΩ, with 4 selectable DC test voltages (500V, 1kV, 2.5kV & 5kV). The E3511 has a large analogue scale which also displays AC or DC voltage up to 1000V. A latching test switch also allows hands-free testing on the Metrohm insulation tester.

The Metrohm E3511 5kV analogue insulation tester offers a full over-voltage and over-current protection for measurements, with 14 - 16 hours operation from re-chargeable NiMH batteries. The Metrohm insulation unit is supplied in a rugged carry case with an accessory case that clips to the lid and will carry the supplied test leads and manual.

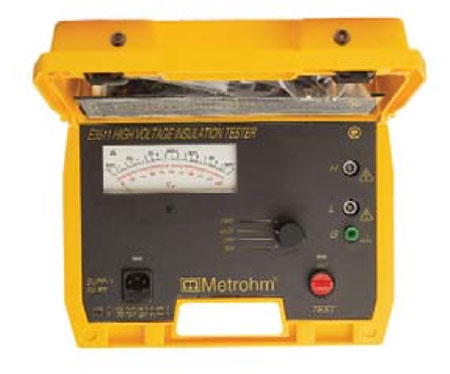

Metrohm 5kV Insulation Tester

Martindale Electric Metrohm METE3511 5kV Analogue Insulation Tester Specifications

METE3511 Insulation Resistance Range: 100kΩ to 100GΩ

Insulation Range Accuracy: +/- 1.5% of scale length

Insulation Range Temperature Coefficient: <0.04% of scale length/°C

Metrohm METE3511 Voltage Range: 1000V AC or DC

Voltage Range Accuracy: +/- 1.5 of scale length

Test Voltages: 500V, 1kV, 2.5kV, 5kV DC

Test Voltage Accuracy: +/- 5% at 10MΩ

Break Point Current: 0.5mA nominal

Short Circuit Current: 1.2mA nominal

Ripple Voltage: <10V peak to peak (R<10MΩ

Housing: Yellow ABS, black polycarbonate

Dimensions: 330 x 263 x 144mm

Metrohm METE3511 Weight: 4.2kg approx



Martindale Electric Metrohm METE3511 5kV Analogue Insulation Tester Contents

  • Metrohm E3511 5kV analogue insulation tester
  • 2m Test leads
  • Carrying case
  • Crocodile Clips
  • Accessory bag
  • Re-chargeable NiMH batteries
  • Instructions manual
