Martindale Electric Metrohm METE1612 Earth Tester Description

The Martindale Electric Metrohm E1612 is a handheld earth resistance tester for accurate measurement of earth resistance and soil resistivity. The Metrohm earth tester has been designed to be very simple and easy to use.

This E1612 microprocessor controlled unit has advanced safety features and a large, clear integral LCD screen for displaying the test results on. The Metrohm E1612 earth tester includes batteries that weigh less than 1.5kg, making the earth testing device ideal for the mobile approach.

The Martindale Electric Metrohm E1612 set includes an instruction manual with simple illustrated instructions of how to carry out earth testing with 2 and 3 spikes and measuring soil resistivity using 4 spikes.

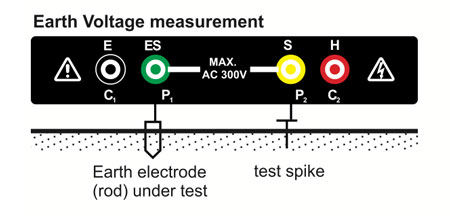

Metrohm METE1612 Earth Voltage Measurement



Martindale Electric Metrohm METE1612 Earth Tester Specifications

Measuring Ranges: Earth Resistance: 2Ω / 20Ω / 200Ω / 2kΩ, Earth Voltage: 0-300V AC

Metrohm METE1612 Measurement Frequency: 820 Hz

Earth Resistance Resolution: 2Ω range: 0.01Ω, 20Ω range: 0.1Ω, 200Ω range: 1Ω, 2kΩ range: 0.01kΩ

Earth Voltage Resolution: 1 V

Accuracy: Earth Resistance: ± 2% rdg ± 3dgts, Earth Voltage: ± 2% rdg ± 3dgts

Temperature & Humidity: Operating: 0°C ~ 50°C ≤ 80% R.H, Storage: -10°C ~ 60°C ≤ 80% R.H

Altitude: Up to 2000m

Power: 8 x 1.5V LR6/AA batteries

Auto Off time: Approx 2¼ minutes

Dimensions: 250mm(L) x 190mm(W) x 110mm(D)

Metrohm METE1612 Weight: Approx 1430g

Safety: Conforms to BS EN 61010-1 CAT IV 300 V, Class II Double Inslation

Pollution Degree: 2

Test Leads supplied conform to BS EN 61010-031 CAT III 600V, 2A

METE1612 EMC: Conforms to BS EN 61326



Martindale Electric Metrohm METE1612 Earth Tester Contents

  • Martindale Electric Metrohm METE1612 Earth Tester
  • Set of test leads with integral crocodile clips (red 15m, black 10m, yellow 10m and green 5m)
  • Carrying case
  • Set of 4 x Earth spikes
  • Shoulder strap, 8 x 1.5V
  • Alkaline batteries LR6/AA
  • F100mA 250V 5 x 20mm fuse
  • Tough Durable Case
  • Instructions manual
