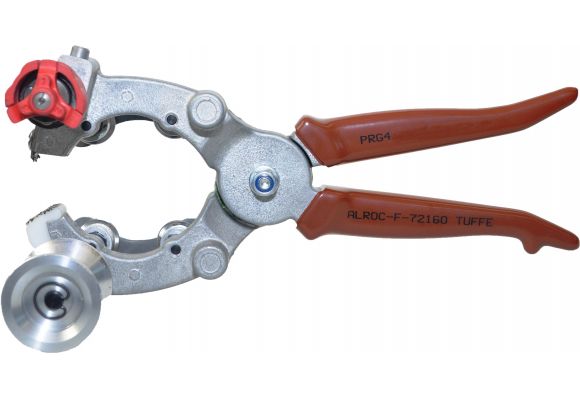

Alroc PRG4/C25-L283335 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depth

Alroc PRG4/C25-L283335 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depth

Alroc Tools











Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV



  • Tool Ref : Alroc PRG4/C25-L283335
  • MV Medium Voltage Cable Jointing Tool
  • Multifunction Tool For MV Cable Outer Sheath



Alroc PRG4/C25-L283335 Functions

  • Remove cable outer sheath

Alroc PRG4/C25-L283335



Cable Diameters : 47 - 75 mm (1.850 - 2.953 in)

Circular Cutting Thickness Capacity : 2.5 mm

Longitudinal Cutting Thickness Capacity : 2.8 - 3.3 - 3.5 mm




Alroc PRG4/C25-L283335 MV pliers enables the user to make a circular and longitudinal cut in order to remove cable's outer sheath.

All cutting depths range from 0.5mm to 5mm and the maximum cutting depth for the cutting head with 3 positions is 3.5mm.



Alroc Spare Parts

  • MTC4/25 - Sapre blade for circular cutting (x4)
  • TRL/28-33-35 - Spare interchangeable longitudinal cutting head for PRG3/2233





Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.

Alroc Cable Tools
