Alroc PRG3/C22L222833 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depths

Alroc PRG3/C22L222833 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depths

Alroc Tools











Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV



  • Tool Ref : Alroc PRG3/C22L222833
  • MV Medium Voltage Cable Jointing Tool
  • Multifunction Tool for MV Cable Outer Sheath



Alroc PRG3/C22L222833 Functions

  • Remove cable outer sheath

Alroc PRG3/C22L222833



Cable Diameters : 26 - 52 mm (1.024 - 2.047 in)

Peelable Semiconductor : 0.4 - 1.5 mm

Circular Cutting Thickness Capacity : 2.2 mm (0.087 in)

Longitudinal Cutting Thickness Capacity : 2.2-2,8-3.3 mm (0.087-0.110-0.130 in)

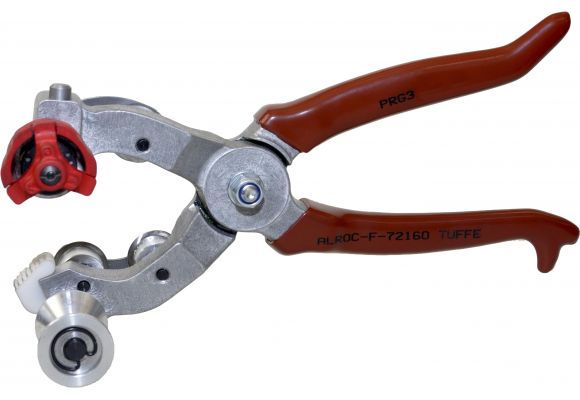

TheAlroc PRG3/C22L222833 pliers enables the user to make a circular and longitudinal cut in order to remove cable's outer sheath. There are 3 different longitudinal cutting depths availablein one interchangeable cutting head.



Alroc Spare Parts



  • MTC3/22 - Spare blade for cicular cutting (x4)
  • TRL/22-28-33 - Spare interchangeable longitudinal cutting head for PRG3/2233





Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
