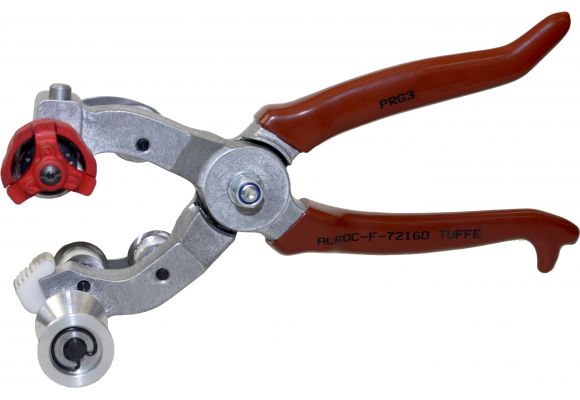

Alroc PRG3/C20L222830 Pliers For MV Cable Outer Sheath

Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV

• Tool Ref : Alroc PRG3/C20L222830
• MV Medium Voltage Cable Jointing Tool
• Multifunction Pliers For MV Cable Outer Sheath

Alroc PRG3/C20L222830 Functions

• Remove cable outer sheath
• Remove cable outer semi-conductor
• Remove cable insulation
• Shape cable insulation

Cable Diameters : 26 - 52 mm (1.024- 2.047 in)

Circular Cutting Thickness Capacity : 2.0mm / 0.079 in

Alroc PRG3/C20L222830 enables users to make a circular and longitudinal cut in order to remove cable's outer sheath. With 3 different longitudinal cutting depths in one interchangeable cutting head and a quick set up of the cutting head, the interchangeable cutting head fits on the Alroc PR4, PRG3, PRG4 cable pliers.

Alroc Spare Parts

• SR - Scoring stylus for peelable semiconductor
• LS - Spare blade for peelable semiconductor
• KIT-MF3/40 - Protective wear pads
• BR - Thrust to set the length of insulation to be remove
• VBB1 - Screw for locking the thrust
• PCR - Quick set up right angled 45° handle
• 196855 - Straight handle M10
• 108098 - Clamping knob for blade
• LMF2 - Spare blade for outer sheath and primary insulation

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
