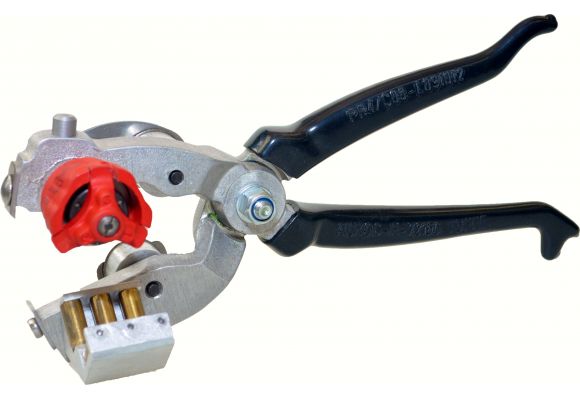

Alroc PR4/C09L091113 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depths

Alroc PR4/C09L091113 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depths

Alroc Tools











Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV



  • Tool Ref : Alroc PR4/C09L091113
  • MV Medium Voltage Cable Jointing Tool
  • Pliers For MV Cable Outer Sheath



Alroc PR4/C09L091113 Functions

  • Make circular and longitudinal cuts in order to remove cable's outer sheath

Alroc PR4/C09L091113



Cable Diameters : 9 - 30 mm (.630 - 1.575 in)

Peelable Semiconductor : 0.354 - 1.181 mm

Circular Cutting Thickness Capacity : 0.9mm

Longitudinal Cutting Thickness Capacity: 0.9-1.1-1.3 mm (0.035-0.043-0.051 in)



Alroc PR4/C09L091113 cable preparation pliers enables the cable jointer to remove the MV outer cable sheath (PE, PVC, PR) with a straight and neat cut, score the peelable semiconductor (with the SR scoring stylus delivered with the tool) and set the length to be removed and remove the insulation with a straight and neat cut.



Alroc Spare Parts

  • MTCP4/09 - Spare blade for circular cutting (x3)
  • TRL/09-11-13 - Spare interchangeable longitudinal cutting head



Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.

Alroc Cable Tools
