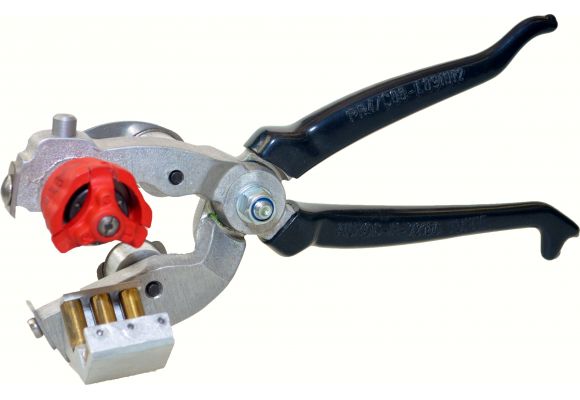

Alroc PR4/C06L060912 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depths

Alroc PR4/C06L060912 Pliers For MV Cable Outer Sheath With 3 Adjustable Longitudinal Cutting Depths

Alroc Tools











Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV



  • Tool Ref : Alroc PR4/C06L060912
  • MV Medium Voltage Cable Jointing Tool
  • Pliers For MV Cable Outer Sheath



Alroc PR4/C06L060912

  • Remove cable outer sheath
  • Make circular and longitudinal cuts

Alroc PR4/C06L060912



Cable Diameters : 9 - 30 mm (.630 - 1.575 in)

Peelable Semiconductor : 0.354 - 1.181 mm

Circular Cutting Thickness Capacity : 0.6 mm

Longitudinal Cutting Thickness Capacity: 0.6-0.9-1.2 mm



AlrocPR4/C06L060912 pliers for MV cable enables the user to make a circular and longitudinal cut in order to remove cable's outer sheath. All cutting depths range from 0.5 mm are available on demand and the maximum cutting depth for the cutting head with 3 positions is 3.5mm / 0.138 in.

Alroc Spare Parts

  • MTCP4/06 - Spare blade for circular cutting (x3)
  • TRL/06-09-12 - Spare interchangeable longitudinal cutting head



Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
