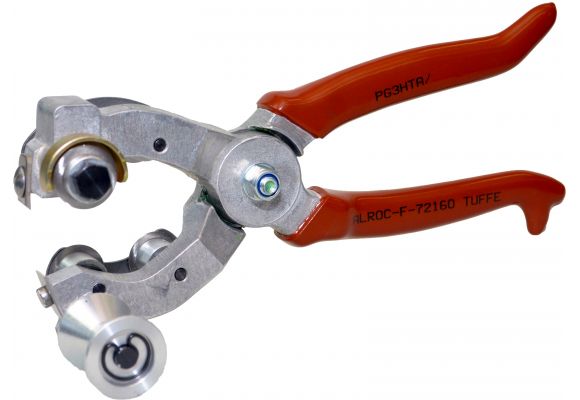

Alroc PG2HTA/2828 Pliers For MV Cable Outer Sheath

Alroc PG2HTA/2828 Pliers For MV Cable Outer Sheath

Alroc Tools











Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV



  • Tool Ref : Alroc PG2HTA/2828
  • MV Medium Voltage Cable Jointing Tool
  • Multifunction Pliers For MV Cable Outer Sheath



Alroc PG2HTA/2828 Functions

  • Remove cable outer sheath



 Alroc PG2HTA/2828



Cable Diameters : 21 - 35mm (0.827 - 1.378 in)

Circular Cutting Thickness Capacity : 2.8 mm (0.110 in)

Longitudinal Cutting Thickness Capacity: 2.8 mm (0.110 in)





Alroc MF3/40 cable preparation tool enables the cable jointer to remove the MV outer cable sheath (PE, PVC, PR) with a straight and neat cut, score the peelable semiconductor (with the SR scoring stylus delivered with the tool) and set the length to be removed and remove the insulation with a straight and neat cut.



Alroc Spare Parts

  • MTL2/28 - Spare blade for longitudinal cutting
  • MTC2/28 - Spare blade for circular cutting



Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.

Alroc Cable Tools
