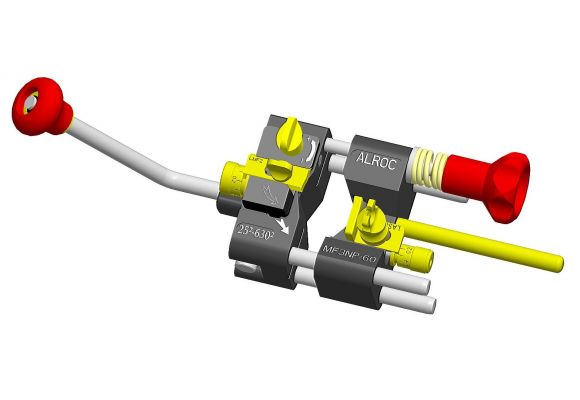

Alroc MF3NP/60 Multifunction Tool For Outer Sheath, Bonded Semiconductor And Insulation

Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV

• Tool Ref : Alroc MF3NP/60
• MV Medium Voltage Cable Jointing Tool
• Multifunction Tool for Outer Sheath, Bonded Semiconductor & Insulation

Alroc MF3NP/60 Functions

• Remove the outer sheath
• Remove the outer semi-conductor
• Remove the insulation

Cable Diameters : 16 - 58 mm (0.630 - 2.283 in)

Non-Peelable Semiconductor : 0.4 - 1.4 mm

Insulation Thickness Capacity : 7mm

Certifications : Approved by ERDF

The Alroc MF3NP/60 tools enables the user to :

• Remove the outer sheath (PE-PVC-PR) with a straight and neat cut.
• Remove the bonded semiconductor with a chamfer and a minimum remaining length of semiconductor of 40 mm / 1.57 inch
• Remove the insulation with a straight and neat cut

Alroc Spare Parts

• PCR - Quick set up right angled 45° handle
• PCR - Quick set up right angled 45° handle
• 196855 - Straight handle M10
• 108098 - Clamping knob for blade
• LASCR1 - Spare blade for bonded semiconductor
• LMF2 - Spare blade for outer sheath and primary insulation

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
