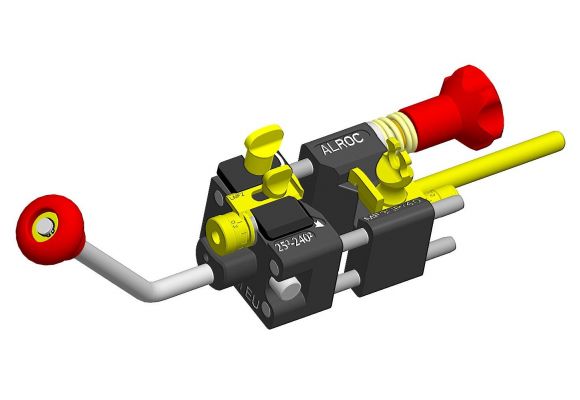

Alroc MF3NP/40 Multifunction Tool For Outer Sheath, Bonded Semiconductor And Insulation

Alroc MF3NP/40 Multifunction Tool For Outer Sheath, Bonded Semiconductor And Insulation

Alroc Tools











Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV



  • Tool Ref : Alroc MF3NP/40
  • MV Medium Voltage Cable Jointing Tool
  • Multifunction Tool for Outer Sheath, Bonded Semiconductor & Insulation



Alroc MF3NP/40 Functions

  • Remove the outer sheath
  • Remove the outer semi-conductor
  • Remove the insulation

Alroc MF3NP/40



Cable Diameters : 16 - 40 mm (.630 - 1.575 in)

Peelable Semiconductor : 0.4 - 1.5 mm

Insulation Thickness Capacity : 7mm

The Alroc MF3NP/60 tools enables the user to :

  • Remove the outer sheath (PE-PVC-PR) with a straight and neat cut.
  • Remove the bonbed semiconductor with a chamfer and a minimum remaining length of semiconductor of 40 mm / 1.57 inch
  • Remove the insulation with a neat and straight cut



Alroc Spare Parts



  • PCR - Quick set up right angled 45° handle
  • PCR - Quick set up right angled 45° handle
  • 196855 - Straight handle M10
  • 108098 - Clamping knob for blade
  • LASCR1 - Spare blade for bonded semiconductor
  • LMF2 - Spare blade for outer sheath and primary insulation



Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.

Alroc Cable Tools
