  • Tool Ref : Alroc MF2/60-S
  • MV Medium Voltage Cable Jointing Tool
  • Multifunction Tool for Outer Sheath & Insulation



Alroc MF2/60-S Functions



  • Remove the outer sheath
  • Remove the insulation

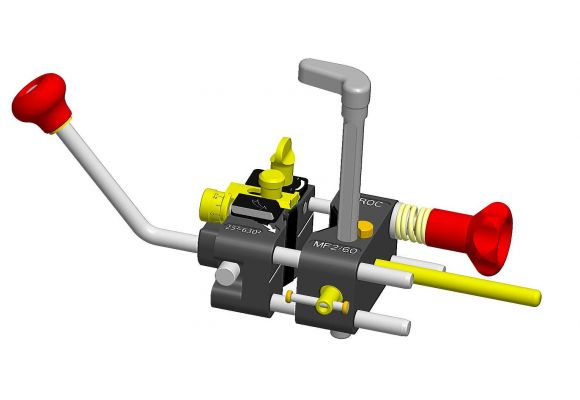

Alroc MF2/60-S



Cable Diameters : 16 - 58 mm (.630 - 2.283 in)

Outer Sheath & Insulation Thickness Capacity : 11 mm



Alroc MF2/60-S enables the user to remove the outer sheath (PE-PVC-PR) with a straight and neat cut, set the length and remove thicker insulation with a straight and neat cut.



Alroc Spare Parts



  • KIT-MF3/40 - Protective wear pads
  • BR - Thrust to set the length of insulation to be remove
  • VBB1 - Screw for locking the thrust
  • PCR - Quick set up right angled 45° handle
  • 196855 - Straight handle M10
  • 108098 - Clamping knob for blade
  • LMF2-S - Spare blade for outer sheath and thick insulation





Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
