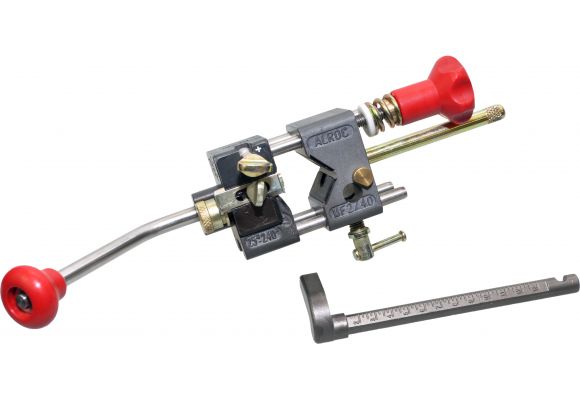

Alroc MF2/40-S Multifunction Tool For Outer Sheath And Insulation

Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV

• Tool Ref : Alroc MF2/40-S
• MV Medium Voltage Cable Jointing Tool
• Multifunction Tool for Outer Sheath & Insulation

Alroc MF2/40-S Functions

• Remove the outer sheath
• Remove the insulation

Cable Diameters : 16 - 40 mm (.630 - 1.575 in)

Outer Sheath & Insulation Thickness Capacity : 11mm

Alroc MF2/40-S anables the user to remove the outer sheath (PE-PVC-PR) with a straight and neat cut, set the length and remove thicker insulation with a straight and neat cut.

Alroc Spare Parts

• LS-C - Spare blades for peelable semiconductor with chamfer
• KIT-MF3/40 - Protective wear pads
• BR - Thrust to set the length of insulation to be remove
• VBB1 - Screw for locking the thrust
• PCR - Quick set up right angled 45° handle
• 196855 - Straight handle M10
• 108098 - Clamping knob for blade
• SRC - Scoring stylus for peelable semiconductor with chamfer
• LMF2 - Spare blade for outer sheath and primary insulation

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
