  • Tool Ref : Alroc LHS2
  • MV Medium Voltage Cable Jointing Tool
  • Mono-function Tool For Bonded Semi-conductor



Alroc LHS2 Functions

  • Remove cable outer semi-conductor

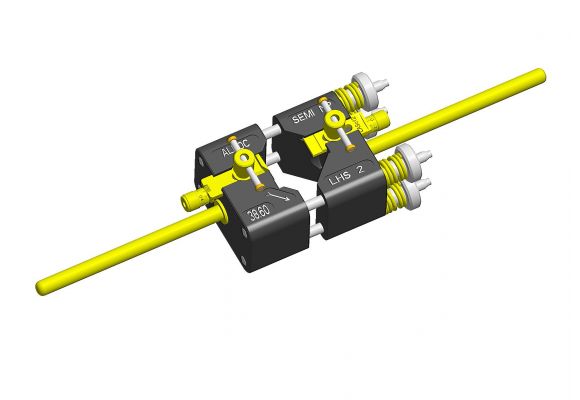

Alroc LHS2



Cable Diameters : 38 - 60  mm (1.496 - 2.362 in)





The Alroc LHS2 enables the user to remove bonded semiconductor and the back-iron is used to set the pitch of the tool in order to get a good result over the insulation.



Alroc Spare Parts

  • LASC2 - Spare blade for bonded semiconcuctor

Associated Tools

  • LH2 - Monofunction tool for insulation
  • PRG3-C20L222830 - Pliers for MV cable outer sheath with 3 adjustable longitudinal cutting depth
  • BMF2 - Thrust to stop the tool
