Alroc LH2 Monofunctional Tool For MV Cable Insulation

Alroc LH2 Monofunctional Tool For MV Cable Insulation

Alroc Tools











Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV



  • Tool Ref : Alroc LH2
  • MV Medium Voltage Cable Jointing Tool
  • Monofunction Tool For MV Cable Insulation



Alroc LH2 Functions





  • Remove the insulation
  • Shape the insulation

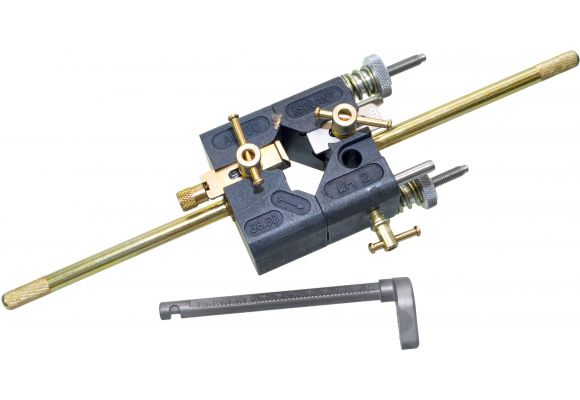

Alroc LH2



Cable Diameters : 38 - 60 mm (1.496 - 2.362in)



The AlrocLH2 enables the user to remove the outer cable insulation. The ruler to set the length of insulation can be easily removed and the back-iron to set the pitch of the tool makes it easy to rotate.



Alroc Spare Parts

  • LAC2 - Spare blade for insulation

Alroc LHS Associated Tools

  • LHS2 - Monofunction tool for semiconductor
  • PRG3-C20L222830 - Pliers for MV cable outer sheath with 3 adjustable longitudinal cutting depth
  • BMF2 - Thrust to stop the tool

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
