  • Tool Ref : Alroc DMSR/80-160
  • HV High Voltage Cable Jointing Tool
  • Multifunction Tool for Bonded Semiconductor & Insulation



Alroc DMSR/80-160 Functions

  • Remove the outer sheath
  • Remove / work on the shield

Alroc DMSR/80-160



Cable Diameters : 80 - 160 mm (3.150 - 6.299 in)

Bonded Semiconductor Thickness Capacity : 3 mm / 0,118 in

Remaining Length of Semicon : 80 mm / 3,150 in

Insulation Thickness Capacity : 35 mm / 1,378 in

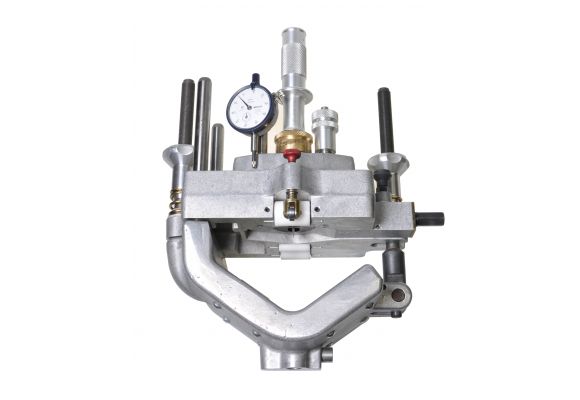

Alroc CDMSR/80-160 enables the user to remove the outer sheath and the aluminium/lead shield on HV and EHV cable by successively performing a longitudinal and circular cut.

With an embeded mechanical dial gauge the user is able to score the aluminium shield without cutting through it.

Key benefits of the Alroc DMSR/80-160 are:



  • Switch from longitudinal cut to circular cut without removing the tool from the cable
  • Sound alert when the blade is touching the aluminium/lead shield
  • Very fine tuning of the cutting depth


Alroc Spare Parts

  • BE-DMSR - Shield detection device
  • 205130 - Conductive aluminium tape
  • LDMS38 - Spare blade for outer sheath and shield

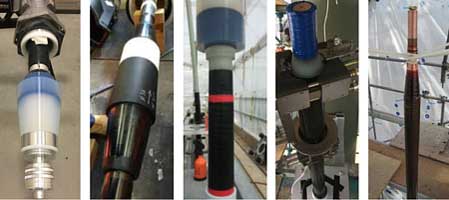

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
