Alroc DMSR/40-90 Stripping Tool For HV and EHV Cable Outer Sheath And Shield

Alroc Tools - High Voltage HV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV

• Tool Ref : Alroc DMSR/40-90
• HV High Voltage Cable Jointing Tool
• Stripping Tool For HV and EHV Cable Outer Sheath And Shield

Alroc DMSR/40-90 Functions

• Remove the outer sheath
• Remove / work on the shield

Cable Diameters : 40 - 90 mm (.575 - 3.543 in)

Screen Thickness Capacity: 11mm (0.433 in)

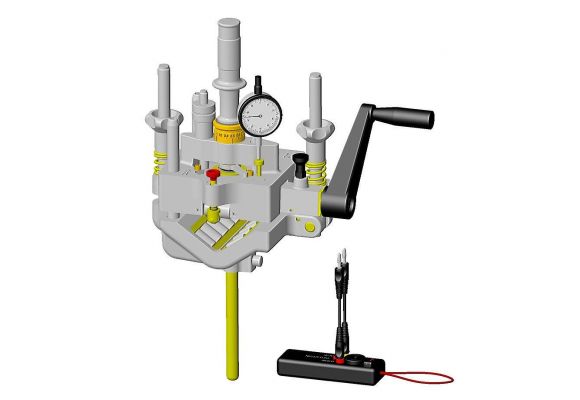

The Alroc DMSR/40-90 enables the user to remove the outer sheath and the aluminium/lead shield on HV and EHV cable by successively performing a longitudinal and circular cut. With an embeded mechanical dial gauge, the user scores the aluminium shield without cuting through it.

Benefits of the Alroc DMSR/40-90 include:

• Switch from longitudinal cut to circular cut without removing the tool from the cable
• Sound alert when the blade is touching the aluminium/lead shield
• Very fine tuning of the cutting depth

Alroc Spare Parts

• BE-DMSR - Shield detection device
• 205130 - Conductive aluminium tape
• LDMS38 - Spare blade for outer sheath and shield

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
