Alroc DMS 95-145 Stripping Tool For HV And EHV Cable Outer Sheath And Shield

Alroc DMS 95-145 Stripping Tool For HV And EHV Cable Outer Sheath And Shield

Alroc Tools











Alroc Tools - High Voltage HV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV





  • Tool Ref : Alroc DMS 95-145
  • HV High Voltage Cable Jointing Tool
  • Multifunction Tool for Bonded Semiconductor & Insulation



Alroc DMS 95-145 Functions

  • Remove the outer sheath
  • Remove / work on the shield

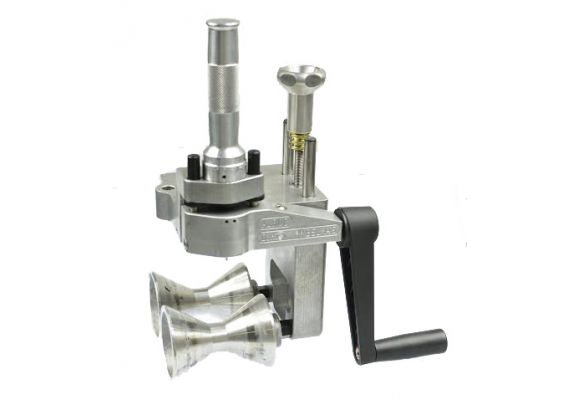

Alroc DMS 95-145



Cable Diameters : 5 - 145 mm (3.740 - 5.709 in)

Thickness Capacity: 11mm (0.433 in)

Shield Detection: Yes



Alroc DMS 95-145 enables the user to remove the outer sheath and the aluminium/lead shield on HV and EHV cable by successively performing a longitudinal and circular cut.The DMs-95-145 also provides a sound alert to let the user know the tool is touching the aluminium/lead shield.



Alroc Spare Parts

  • LDMS38 - Spare blade for outer sheath and shield
  • 193725 - 6 volts battery diameter 13x25 mm



Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
