  • Tool Ref : Alroc CWF3/60
  • MV Medium Voltage Cable Jointing Tool
  • Multifunction Tool for Outer Sheath And Insulation



Alroc CWF3/60 Functions

  • Remove cable outer sheath
  • Remove cable outer semi-conductor
  • Remove cable insulation
  • Shape cable insulation

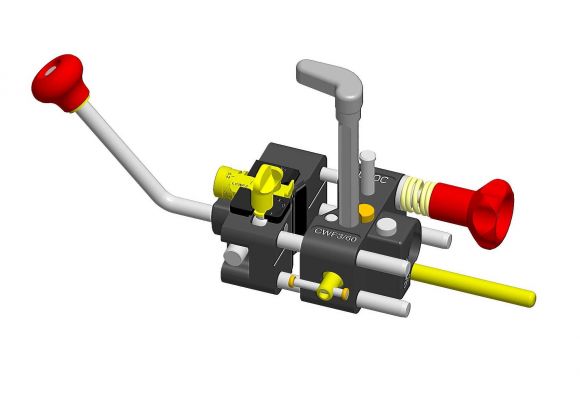

Alroc CWF3/60



Cable Diameters : 16 - 58 mm (0.630 - 2.283 in)

Peelable Semiconductor : Optional

Insulation Thickness Capacity : 7mm



The Alroc CWF3/60 tools enables the user to :

  • Remove the outer sheath (PE-PVC-PR) with a straight and neat cut
  • Set the length and remove the insulation with a straight and neat cut
  • Both optional functions

Alroc Spare Parts

  • KIT-MF3/40 - Protective wear pads
  • BR - Thrust to set the length of insulation to be remove
  • VBB1 - Screw for locking the thrust
  • PCR - Quick set up right angled 45° handle
  • 196855 - Straight handle M10
  • 108098 - Clamping knob for blade
  • LCWF2 - Spare blade for outer sheath and insulation CWF3/60

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
