Alroc CNPT/240-1-MV-NG Multifunction Tool Kit For Outer Sheath, Semiconductor & Insulation

Alroc Tools - Medium Voltage MV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV

• Tool Ref : Alroc CNPT/240-1-MV-NG
• MV Medium Voltage Cable Jointing Tool Kit
• Multifunction Tool Kit for Outer Sheath, Peelable Semiconductor & Insulation

Alroc CNPT/240-1-MV-NG Functions

• Remove the outer sheath
• Work on the outer sheath
• Remove / work on the shield
• Remove the outer semi-conductor
• Remove the insulation
• Shape the insulation
• Tool kits overview
• Maintain / hang / fix cables

Cable Diameters : 16 - 40 mm (.630 - 1.575 in)

Tool Dimensions

Length: 390mm

Width: 310mm

Height: 145mm

Weight Without Box: 6.9 Kg

Packaging: Case

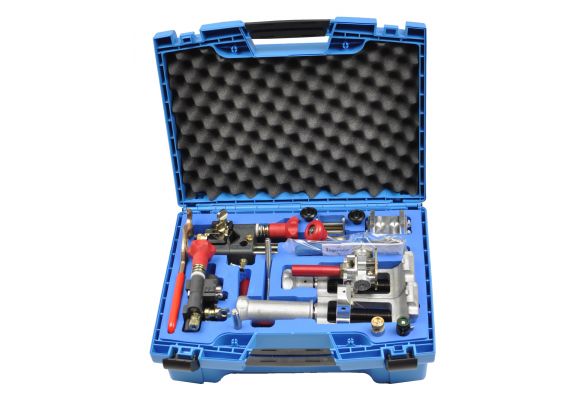

Alroc CNPT/240-1-MV-NG cable preparation tool kit enables the cable jointer to remove the MV outer cable sheath (PE, PVC, PR) with a straight and neat cut, score the peelable semiconductor (with the SR scoring stylus delivered with the tool) and set the length to be removed and remove the insulation with a straight and neat cut.

Alroc Spare Parts

• MF2/40 - Multifonction tool for outer sheath and insulation
• MF1+/25 - Tool for bonded semiconductor and peelable with stylus
• SRC - Scoring stylus for peelable semiconductor with chamfer
• SCH - Chamfering stylus for insulation
• ALROC-FENTE - Tool to perform slits on cable’s outer sheath
• ROTO-TMG - Connector holder for bolted and clamping connections
• GFE-TMG - Roller block for ROTO-TMG to tighten the outer sheath over screen connection
• K7/GRATT - Cartidge dedicated to sheath abrading, to be mounted on tool
• ROTO-TMG EV/NPT - Tool to spread PE outer sheath with aluminium screen
• EV2000 150-240 - Tool to spread PVC outer sheath with aluminium screen
• EV 150/240 - Tool to spread PVC outer sheath with aluminium screen
• GRI - Scraper for residues of bonded semiconductor
• LIGAREX - Clamping tool with return spring for straps

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
