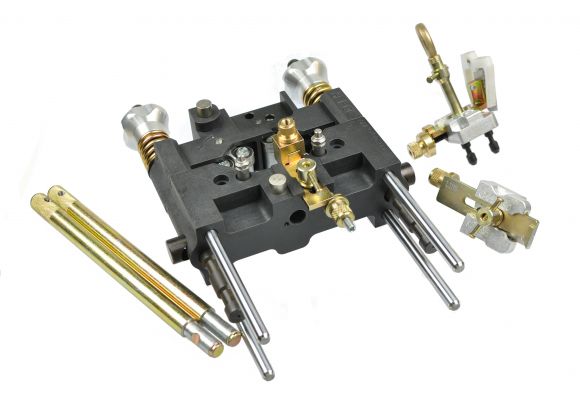

Alroc CAMF5/55-160-NSCF Multifunction Tool For Bonded Semiconductor And Insulation

Alroc CAMF5/55-160-NSCF Multifunction Tool For Bonded Semiconductor And Insulation

Alroc Tools











Alroc Tools - High Voltage HV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV





  • Tool Ref : Alroc CAMF5/55-160-NSCF
  • HV High Voltage Cable Jointing Tool
  • Multifunction Tool for Bonded Semiconductor & Insulation



Alroc CAMF5/55-160-NSCF Functions

  • Remove cable outer semi-conductor
  • Remove cable insulation

Alroc CAMF5/55-160-NSCF



Cable Diameters : 55 - 160 mm (2.165 - 6.299 in)

Bonded Semiconductor Thickness Capacity : 3 mm / 0,118 in

Remaining Length of Semicon : 80 mm / 3,150 in

Insulation Thickness Capacity : 35 mm / 1,378 in



Alroc  AMF5/55-160-NSCF tool provides bonded semiconductor removal for high voltage power cables : very steady (16 ball bearings around the cable), shaping the cable round over the insulation, constant diameter over the insulation preventing the blade from digging into the insulation.

Insulation removal : back-iron that enables the cable jointer to set the pitch of the cable tool thus making the rotation of the cable tool easy when removing the high voltage cable insulation.



Alroc Spare Parts

  • LFNS - Spare blade for bonded semiconductor
  • LINS - Spare blade for insulation



Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.

Alroc Cable Tools



Video: Alroc AMF5 55-160 NSCF Cable Jointing Tool
