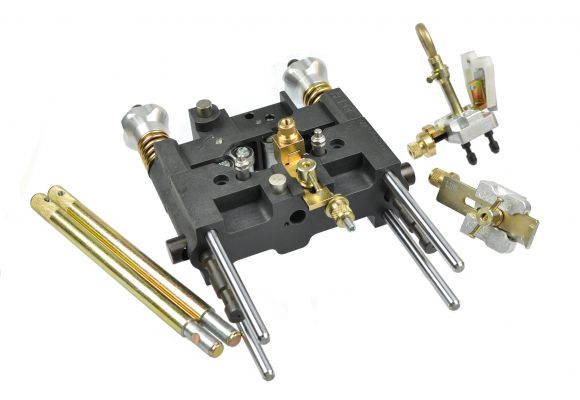

Alroc CAMF5/55-160-BBCF - Multifunction Tool for Bonded Semiconductor & Insulation

Alroc Tools - High Voltage HV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV

• Tool Ref : Alroc CAMF5/55-160-BBCF
• HV High Voltage Cable Jointing Tool
• Multifunction Tool for Bonded Semiconductor & Insulation

Alroc CAMF5/55-160-BBCF Functions

• Remove cable outer semi-conductor
• Remove cable insulation

Cable Diameters : 55 - 160 mm (2.165 - 6.299 in)

Bonded Semiconductor Thickness Capacity : 3 mm / 0,118 in

Remaining Length of Semicon : 80 mm / 3,150 in

Insulation Thickness Capacity : 35 mm / 1,378 in

Alroc CAMF5/55-160-BBCF tool provides bonded semiconductor removal for high voltage power cables : very steady (16 ball bearings around the cable), shaping the cable round over the insulation, constant diameter over the insulation preventing the blade from digging into the insulation.

Insulation removal : back-iron that enables the cable jointer to set the pitch of the cable tool thus making the rotation of the cable tool easy when removing the high voltage cable insulation.

Alroc Spare Parts

• LFNS - Spare blade for bonded semiconductor
• LINS - Spare blade for insulation

Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
