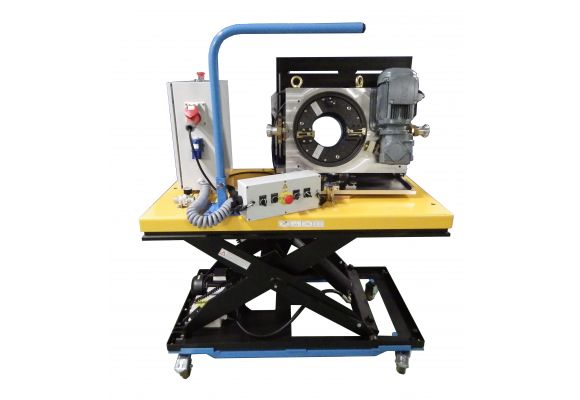

Alroc AMR1000/95-150 Heavy Duty Multifunction Tool For Insulation And Bonded Semiconductor

Alroc AMR1000/95-150 Heavy Duty Multifunction Tool For Insulation And Bonded Semiconductor

Alroc Tools











Alroc Tools - High Voltage HV

Cable Jointers Tools LV MV HV EHV

11kV 33kV 66kV 132kV 245kV 400kV





  • Tool Ref : Alroc AMR1000/95-150
  • HV High Voltage Cable Jointing Tool
  • Heavy Duty Multifunction Tool for Bonded Semiconductor & Insulation



Alroc AMR1000/95-150 Functions

  • Remove the outer semi-conductor
    Remove the insulation

Alroc AMR1000/95-150



Cable Diameters : 95 - 150 mm (3.740 - 5.906 in)

Max insulation Cutting Thickness : 44 mm / 1.732 in

Stripping Length : 1000 mm /  39.370  in

Certifications : Machinery Directive 2006/42/CE



Alroc AMR1000/95-150 has been designed for production and test applications.The AMR enable the user to remove effortlessly and repetitively the thickest XLPE insulation and the bonded semiconductor of HV and EHV cable.

Once the cable tightens onto the ball bearing, the user only has to press 2 buttons avoiding any body stress which can lead to musculoskeletal injuries.



Alroc Spare Parts



  • LFNS - Spare blade for bonded semiconductor
  • LAMR95 - Spare blade for insulation



Alroc tools are preferred by MV-HV Cable Jointers for cable preparation prior to the installation of cold shrink, heat shrink, slip-on and EPDM rubber cable joints, terminations and connectors from leading manufacturers including ABB, Nexans Euromold, Elastimold, Pfisterer, Prysmian and 3M.
