Prysmian Bicon 376AC08 Trefoil Cable Cleats - 35-36mm

Prysmian Bicon Cable Cleats

Prysmian Trefoil Cleats

Prysmian Bicon 376AC08 / 376AE08

Suitable for Cable Diameters 35-36mm

Prysmian Bicon Trefoil 376AC08 Cable Cleat is made from aluminium and suitable for single core cables laid in trefoil with a cable diameter of 35-36mm, this includes LV, 11kV and 33kV.

Trefoil cable cleats are typically used to clamp and retain BS5467 (BS6724 LSF cables) single core XLPE insulated, AWA armoured cables (1000 volts).

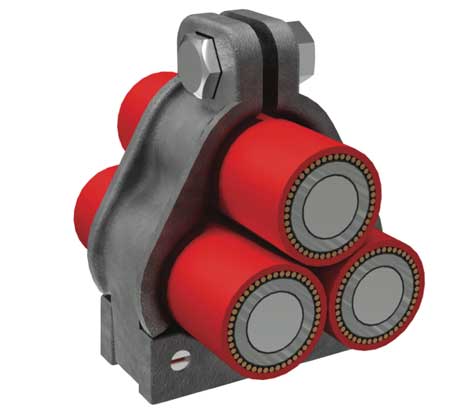

Pictured: Prysmian Bicon 376AC08 Trefoil Cable Cleats

Prysmian Bicon 376AC08 Trefoil Cable Cleats - 35-36mm

Prysmian Bicon 376AC08 Trefoil Cable Cleats - Product Specification

Prysmian Design Number Cable Diameter Dimensions Weight
Standard

Epoxy Coated

min

max

B D

C (Single fixing)

Bicon 376AC08

Bicon 376AE08 35mm 36mm 113mm 38mm 89mm 298g



Pictured: Prysmian Bicon 376AC08 Trefoil Cable Cleats

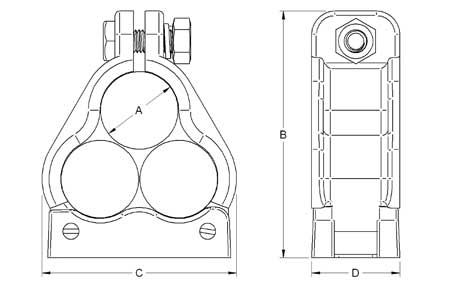

Dimensions Illustration

Prysmian Bicon 376AC08 Trefoil Cable Cleats - Dimensions Illustration
