Prysmian A220 423LSF-53 (11.0-13.5mm) LSF Brass BICON Gland Kits

A2 Cable Glands - LSF

BICC BICON A220

Prysmian 423LSF-53

Prysmian BICON LSF A2 Cable Gland Kits

LV Cable Terminations



BICC Bicon A220 LSF Cable Glands - Gland Kit Prysmian 423LSF-53

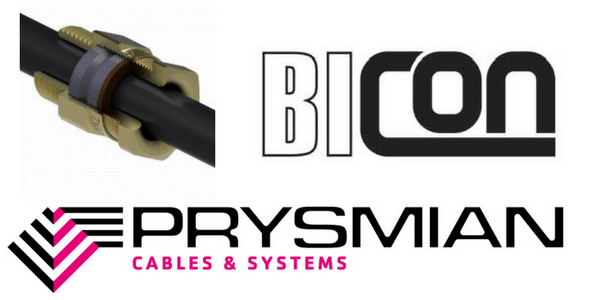

Prysmian Bicon 423LSF-53 (A220) A2 LSF cable glands with 20mm entry thread enable cable termination of unarmoured low smoke zero halogen cables – the A220 cable gland LSF kit provides mechanical cable retention up to 13.5mm cable diameters.

A220 LSF cable glands are LUL approved for safe use on London Underground including sub-surface (tunnels) and stations (LUL APR Product ID 1971).

A220 cable gland termination is available in a Nickel plated version Prysmian 423LSF-53V.

A220 BICON Brass Cable Gland Kits

• Min Cable Dia 11.0mm
• Max Cable Dia 13.5mm
• Gland Entry Thread M20 x 1.5mm
• Gland Entry Thread Length 10mm

For LSF (Low Smoke & Fume), LSOH (Low Smoke Zero Halogen) Cables

2 x A220 Cable Glands Per Pack - M20 Cable Gland Entry Thread

• Nickel Plated Version - Prysmian 423LSF-53V

A220 LSF Cable Glands

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: A220
• Quantity Per Kit: 2 Cable Glands
• Cable Gland Type: Brass
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
• Cable Diameter (B): 11.0mm Minimum
• Cable Diameter (B): 13.5mm Maximum
• Entry Thread (D) : M20 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 22mm
• Hexagon A/F (G): 24mm
• Hexagon A/C (H): 27mm
• Order Code: A220 423LSF-53
• Industrial Application Also: Prysmian A220 Cable Gland KM409-53

Application - Indoor/outdoor A2 BICON LSF cable gland kits for mechanical retention of low smoke and fume, low smoke zero halogen unarmoured cables ("stuffing glands"). Suitable for cable glanding circular, unarmoured polymeric (XLPE), PVC and rubber sheathed cables. A2 Prysmian BICON gland kits are rated to IP66 with use of suitable sealing washer or thread sealant at cable gland interface.

Prysmian LSF cable glands comply with LU Standard 1-085 for installation in all London Underground sub-surface locations. Suitable for terminating Prysmian Draka zero halogen low smoke cables including OHLS Saffire and Afumex.





A220 (11.0-13.5mm) LSF Brass BICON Gland Kits - Prysmian 423LSF53

Prysmian A220 423LSF-53 (11.0-13.5mm) LSF Brass BICON Gland Kits
