ABB POLIM-D High Voltage AC Surge Arresters

Indoor / Outdoor 4kV - 36kV

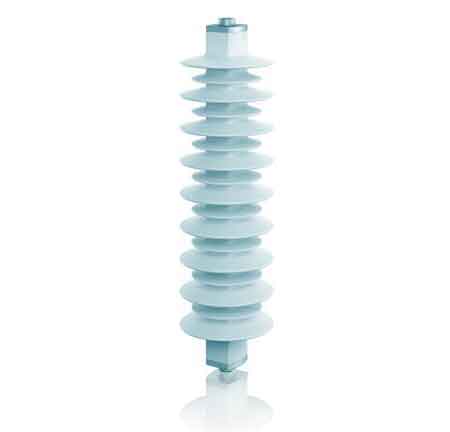

ABB POLIM-D high voltage AC surge arresters are suitable for both indoor and outdoor installation to protect against multiple atmospheric and switching overvoltages including Very Fast Transients (VFT). ABB POLIM-D are suitable for the protection of overhead lines and distribution transformers (pole mounted).

ABB POLIM-D alternating current surge arresters are silicone-housed with a line discharge of class 1 for AC systems up to 52 kV. Designed and tested according to IEC 60099-4.





ABB POLIM-D High Voltage Surge Arresters (AC) Applications

• Transformers
• Overhead lines
• Capacitors, capacitor banks
• Reactors, PLC line traps
• Other medium voltage equipment



ABB POLIM-D Medium Voltage Surge Arrester Technical Data

Type		System Voltage	Contin-uous Operat-ing Voltage	Nominal Dis-charge Current	Short Circuit Rating 50Hz	High Current Impulse	IEC Line Dis-charge Class	Long Duration Current Impulse	App-lication
		Us	Uc	In	Is	Ihc
ABB  POLIM-D		≤ 52kV	≤ 44kV	10kA	20kA rms for 0.2s	100kA	1	250A /  2000μs	Indoor / Outdoor



ABB POLIM-D HV Surge Arrester Rated Voltages

ABB Surge Arrester Type	Rated Voltage
ABB POLIM-D04	5kV rms
ABB POLIM-D06	7.5kV rms
ABB POLIM-D08	10kV rms
ABB POLIM-D10	12.5kV rms
ABB POLIM-D12	15kV rms
ABB POLIM-D14	17.5kV rms
ABB POLIM-D16	20kV rms
ABB POLIM-D18	22.5kV rms
ABB POLIM-D20	25kV rms
ABB POLIM-D22	27.5kV rms
ABB POLIM-D24	30kV rms
ABB POLIM-D26	32.5kV rms
ABB POLIM-D28	35kV rms
ABB POLIM-D30​	37.5kV rms
ABB POLIM-D32	40kV rms
ABB POLIM-D34	42.5kV rms
ABB POLIM-D36	45kV rms
