WT Henley 54428-04 4 Pole Heavy Duty Cutout

WT Henley

WT Henley Heavy Duty Cut-outs

WT Henley 54428-04

4 Pole Heavy Duty Cut-Out

630 Amps TP&N

WT Henley 54428-04 Heavy Duty Cut-outs are designed for use with BS 88 ‘J’ type fuse-links, separate enclosures are provided for phase and neutral/earth connections enhancing user protection, utilising rigid PVC grommets for cable entry/exit allows the unit size to be kept to an absolute minimum, allowing installation in limited spaces.

WT Henley 54428-04 cut-outs employ a mechanical cable termination system for the incoming cables, (Shearbolt) which can accept two conductors from 95-300sqmm, stranded or solid conductors, whilst the outgoing connection, (Hex-drive screws) can accomadate 2 x 120sqmm conductors and a single 240sqmm conductor.

WT Henley 54428-04 Heavy Duty Cut-outs are manufactured in high impact Glass Reinforced Polyester, they are naturally flame retardant, (UL94 V0 rated).

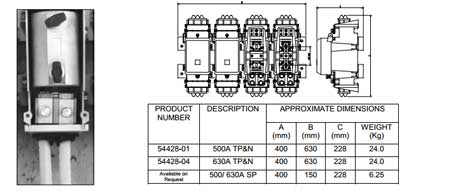

Pictured : WT Henley 54428-04 4 Pole Heavy Duty Cutout

WT Henley 54428-04 Dimensions:

A - 400mm
B - 630mm
C - 228mm
Weight - 24kg

WT Henley 54428-04 4 Pole Heavy Duty Cutout

WT Henley LV Fusegear range includes house service cut-outs, insulated connector boxes (Henley Blocks), heavy duty cut-outs, ABC boxes, overhead service cut-outs, fuse carriers, solid links, rising service boxes, multiway service heads, multi-service pillars, street lighting cut-outs and miniature circuit breakers.

WT Henley also manufacture a complete range of Low and High Voltage Cable Jointing products : LV resin cable joints, 11kV MIRP cable joints, pole top cable terminations, stand-off insulators, mechanical earthing systems, underground cable joint shells, resins, plastic compounds and electrical stress control mastic.

WT Henley Also Have A Range Of House Service Cut Outs 240V 415V CNE & SNE

T&D also offer alongside WT Henley a range of House Service Cut-Outs 240V 415V CNE & SNE.
