General Purpose UL Heat Shrink Tubing

Shrinktek Heat Shrink TubingHeat Shrink Tubing

UL 224 VW1/CSA

Flexible Flame Retarded Polyolefin Heat Shrinkable Tubing


SPUL heat shrink is a flexible flame retarded heat shrink tubing fully marked to UL (UL 224 VW1) and CSA requirements.

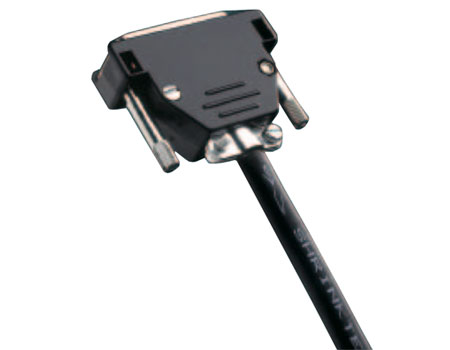

Pictured: General Purpose UL Heat Shrink Tubing

General Purpose UL Heat Shrink Tubing


SPUL Heat Shrink Tubing - Specification

  • 135°C Flexible Heat Shrink Flame Retarded Tubing UL/CSA approved
  • Shrink Ratio: 2:1
  • Operating Temperature: -55°C to 135°C
  • Shrink Temperature : 100°C
  • Heat shrink colours - black
General Purpose UL Heat Shrink Tubing - Specification
Ordering Size (mm) Minimum Expanded Diameter (mm) Maximum Recovered Diameter (mm) Nominal Recovered Wall (mm) Standard Reel Length (m)
1.2 1.2 0.6 0.45 150
1.6 1.6 0.8 0.45 150
2.4 2.4 1.2 0.50 150
3.2 3.2 1.6 0.50 150
4.8 4.8 2.4 0.50 150
6.4 6.4 3.2 0.65 75
9.5 9.5 4.8 0.65 75
12.7 12.7 6.4 0.65 75
19.0 19.0 9.5 0.75 60
25.4 25.4 12.7 0.90 60
38.1 38.1 19.1 0.95 30
50.8 50.8 25.4 1.00 30
76.2 76.2 38.1 1.25 30
102.0 102.0 50.8 1.40 30
